Bangladesh Cold Storage Building

Project Information

PROJECT LOCATION : Bangladesh
ROOM TYPES : 6 x Chiller Rooms Freezer Room
PROJECT PURPOSE : General Cold Room
PROJECT AREA : 1193 m²
REFRIGERATION SYSTEMS : Split Refrigeration System
DOORS : 8 x Sliding Doors
PANELS : 4426 m²

Customer Requests

  • 738 m³ capacity 3 pcs. Chiller Room (+2 °C)
  • 827 m³ capacity 2 pcs. Chiller Room (+2 °C)
  • 2599 m³ capacity 1 pc. Freezer Room (-18 °C)

Project Details

ROOM NAME WIDTH LENGTH HEIGHT ROOM TEMPERATURE CAPACITY
3 x CHILLER ROOM 12,86 m 7,53 m 7,62 m +2 °C 738 m³
3 x CHILLER ROOM 12,86 m 8,56 m 7,62 m +2°C 827 m³
FREEZER ROOM 15,93 m 21,41 m 7,62 m -18 °C 2599 m³

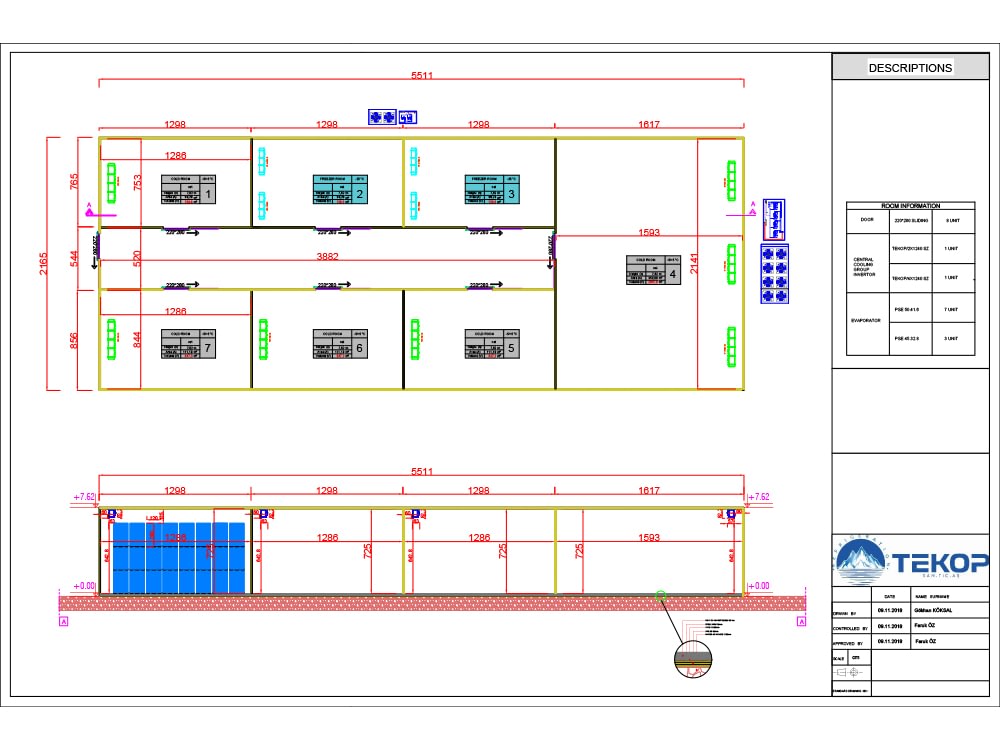

Design
