Chad Freezer Room Project

Project Information

PROJECT LOCATION : Chad
ROOM TYPES : 2 x Freezer Room, 1 x Corridor
PROJECT PURPOSE : General Cold Storage
PROJECT AREA : 92,75 m²
REFRIGERATION SYSTEMS : Split Refrigeration System
COLD ROOM DOORS : 3 x Cold Room Sliding Door
COLD ROOM PANELS : 792 m²

Customer Requests

  • 135,38 m³ capacity 1 pc. Freezer Room (-18°C)
  • 135,38 m³ capacity 1 pc. Freezer Room (-18°C)
  • 45,52 m³ capacity 1 pc. Corridor

Project Detaıls

ROOM NAME AREA HEIGHT ROOM TEMPERATURE CAPACITY
FREEZER ROOM-1 38,68 m² 3,50 m -18 °C 135,38 m³
FREEZER ROOM-2 38,68 m² 350 m -18 °C 135,38 m³
CORRIDOR 12,15 m² 3,50 m 45,52 m³

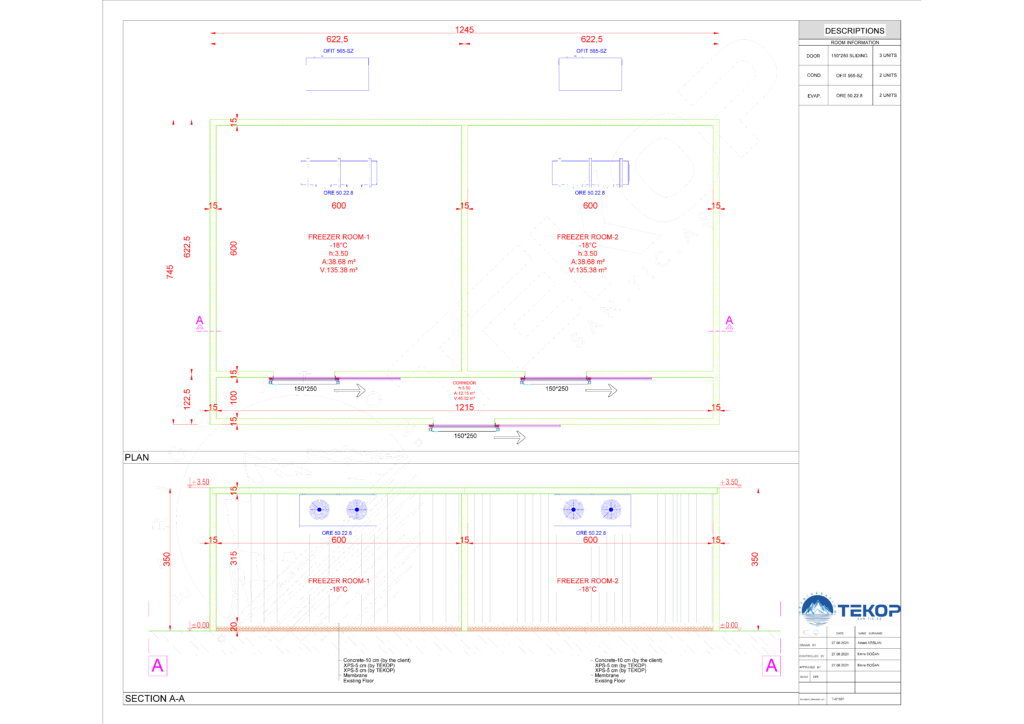

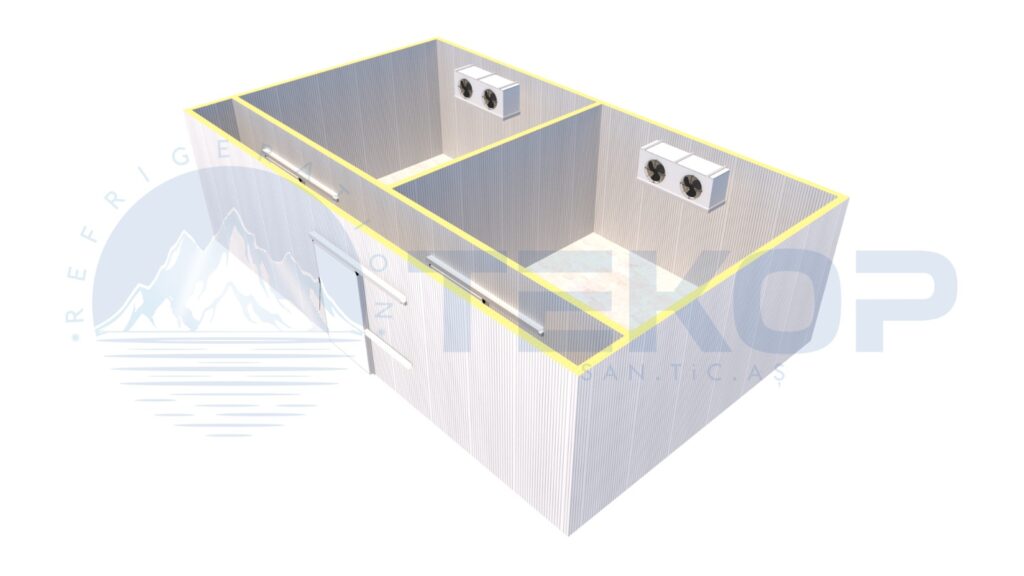

Design

Shipment
