maldives cold storage project

Chiller and Freezer Room Project

Project Information

ROOM TYPES : 1 x Chiller Room , 1 x Freezer Room
PROJECT PURPOSE : General Cold Storage
PROJECT AREA : 29,76 m²
REFRIGERATION SYSTEMS : Split Refrigeration System

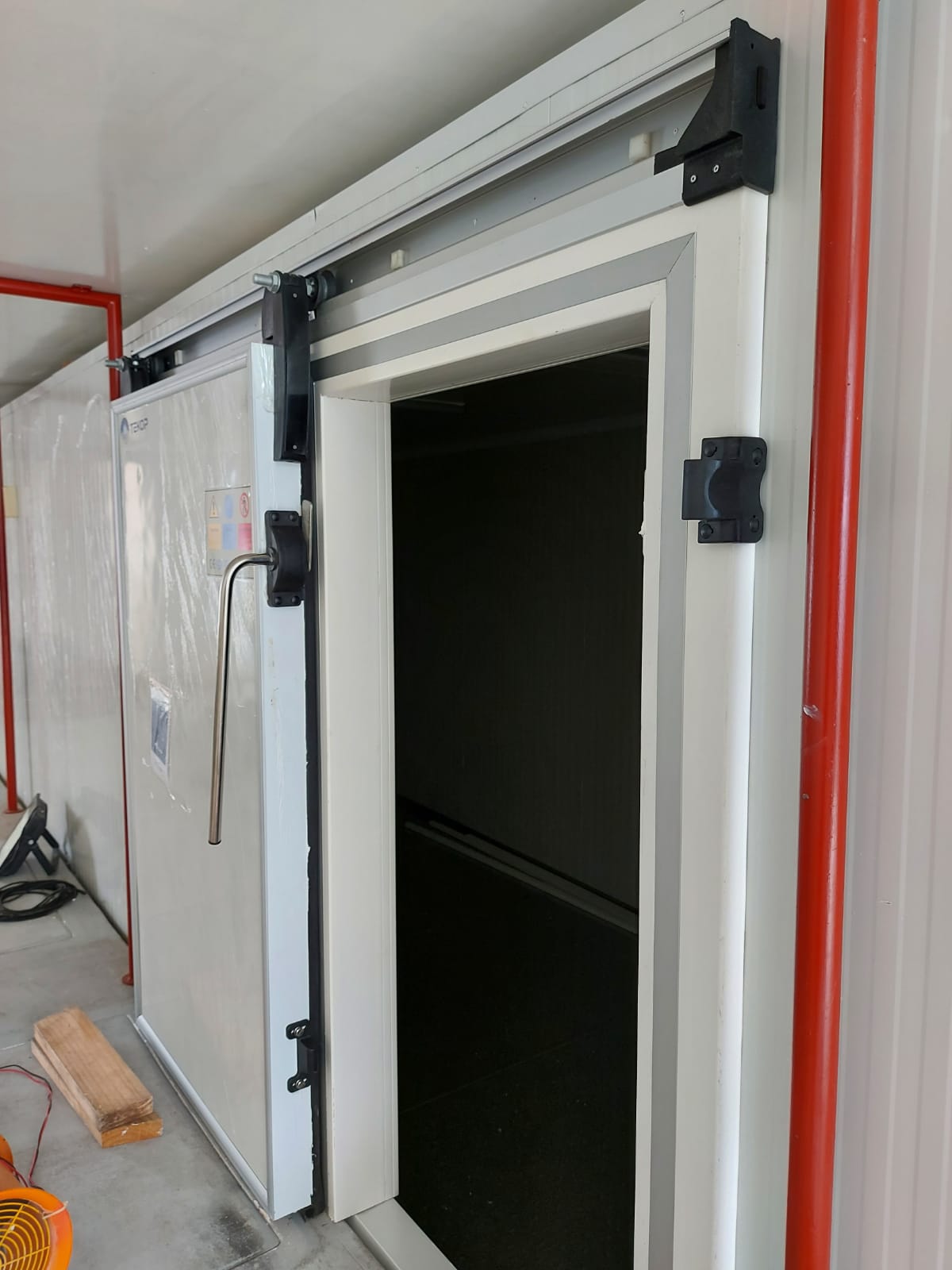

DOORS : 2 x Hinged Cold Room Door
PANELS : 138,9 m²

Customer Requests

  • 37,2 m³ capacity 1 pc. Chiller Room (+2 °C)
  • 37,2 m³ capacity 1 pc. Freezer Room (-18 °C)

Project Detaıls

ROOM NAME AREA HEIGHT ROOM TEMPERATURE CAPACITY
CHILLER ROOM 14,88 m² 2,5 m +2 °C 37,2 m³
FREEZER ROOM 14,88 m² 2,5 m -18 °C 37,2 m³

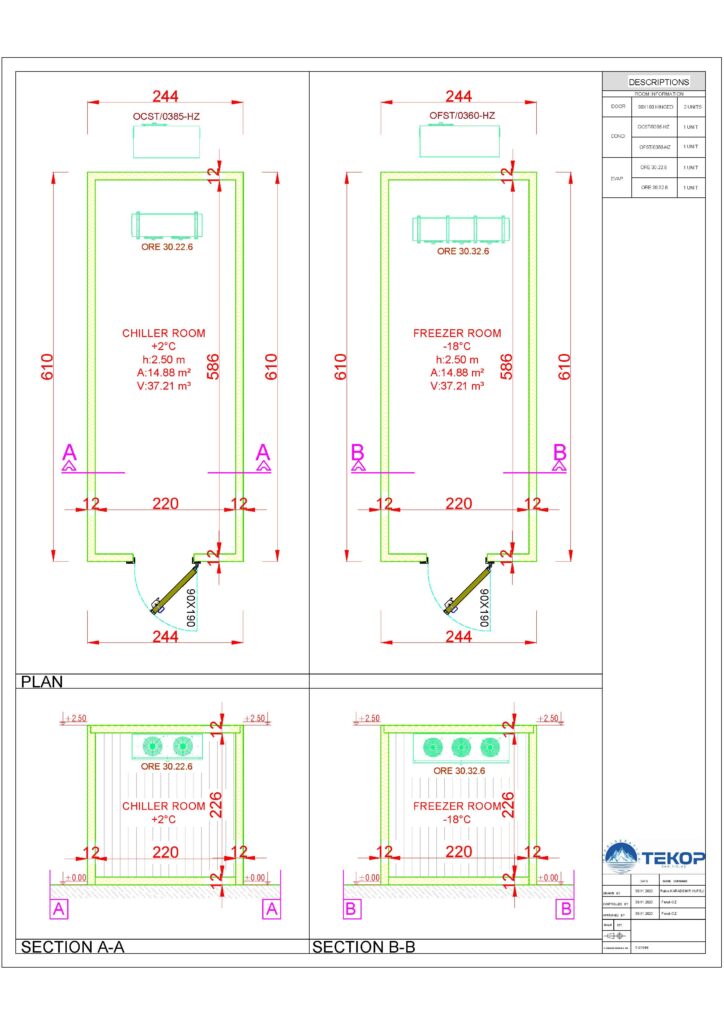

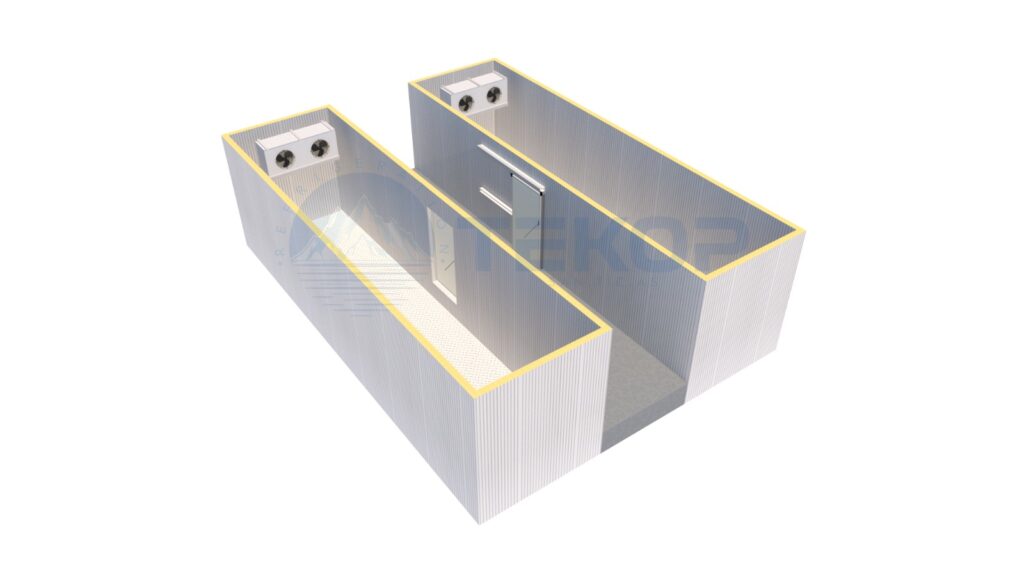

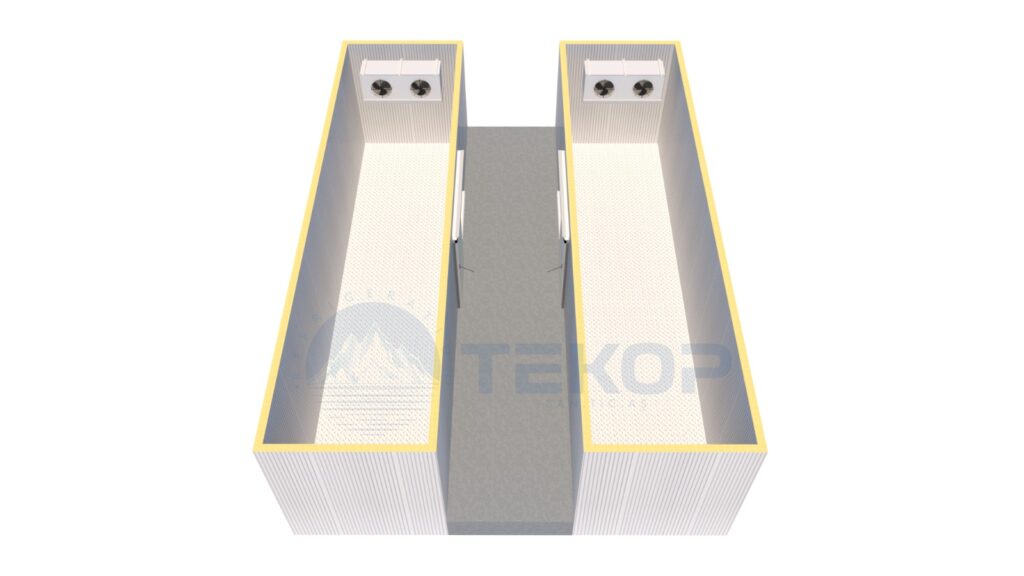

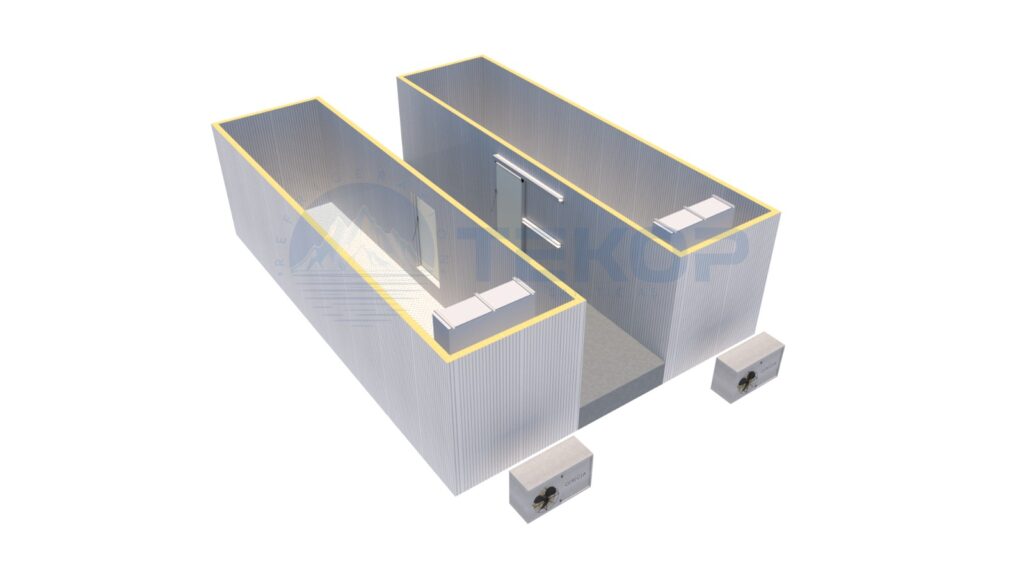

Design

Shipment

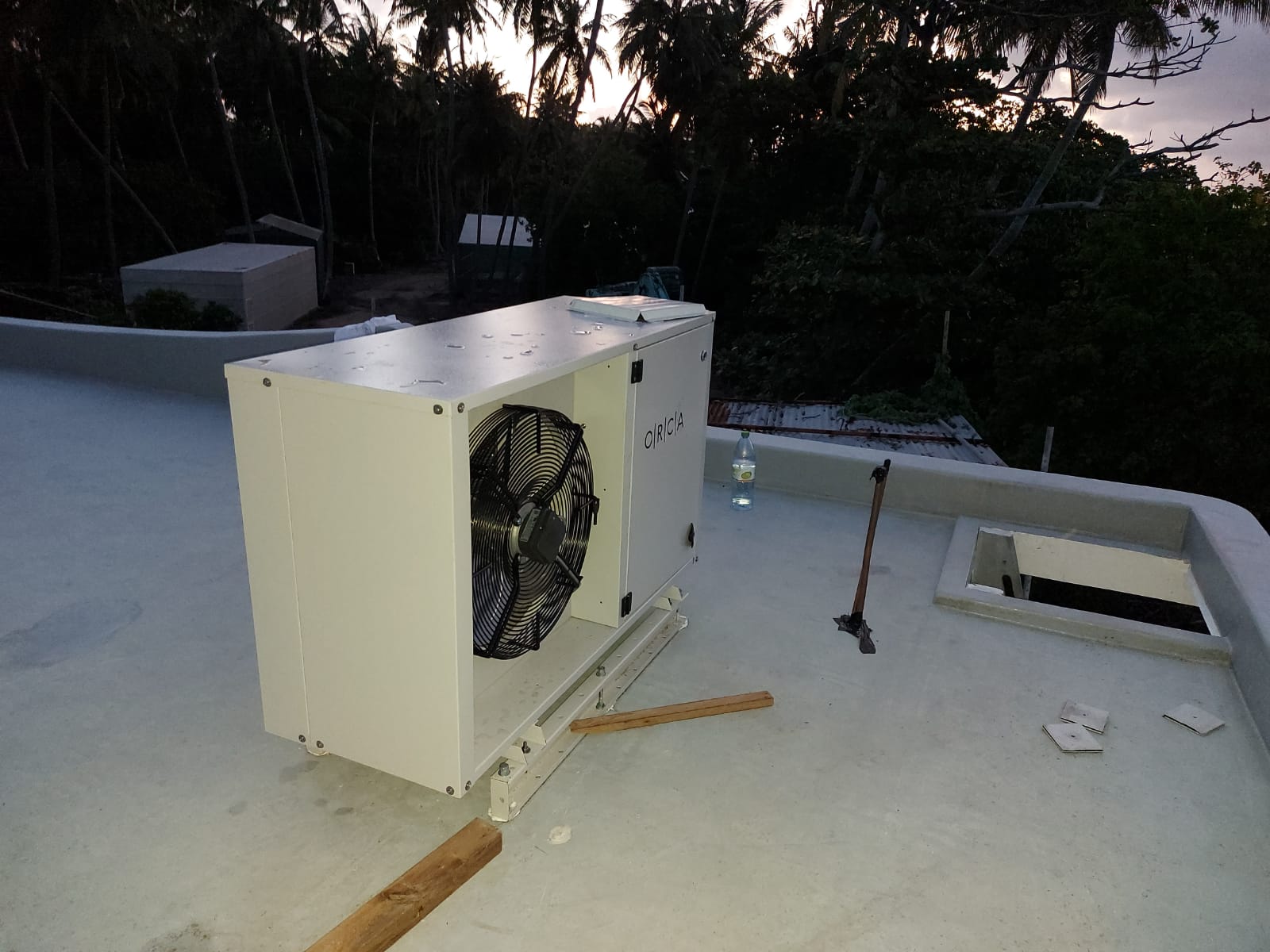

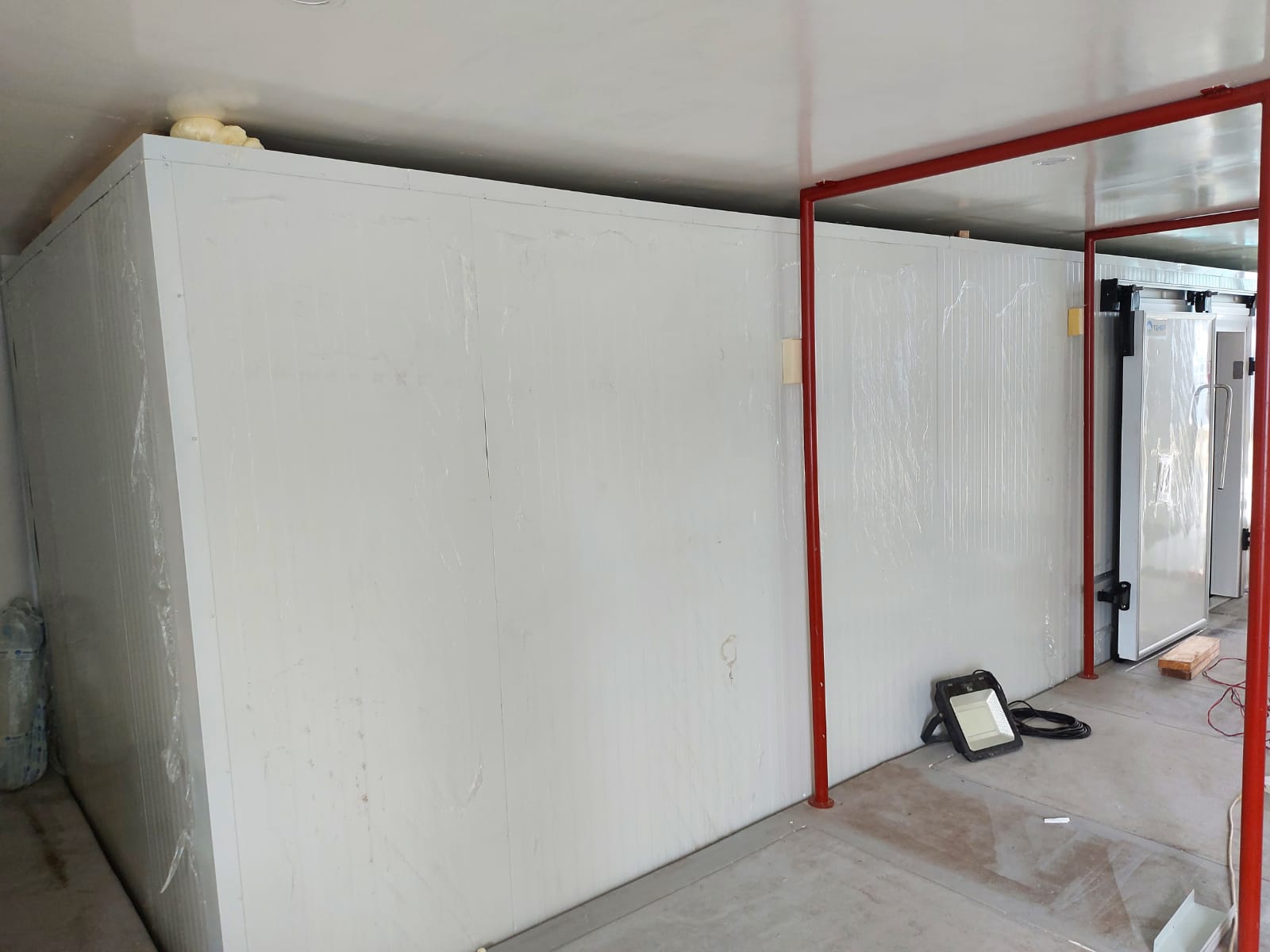

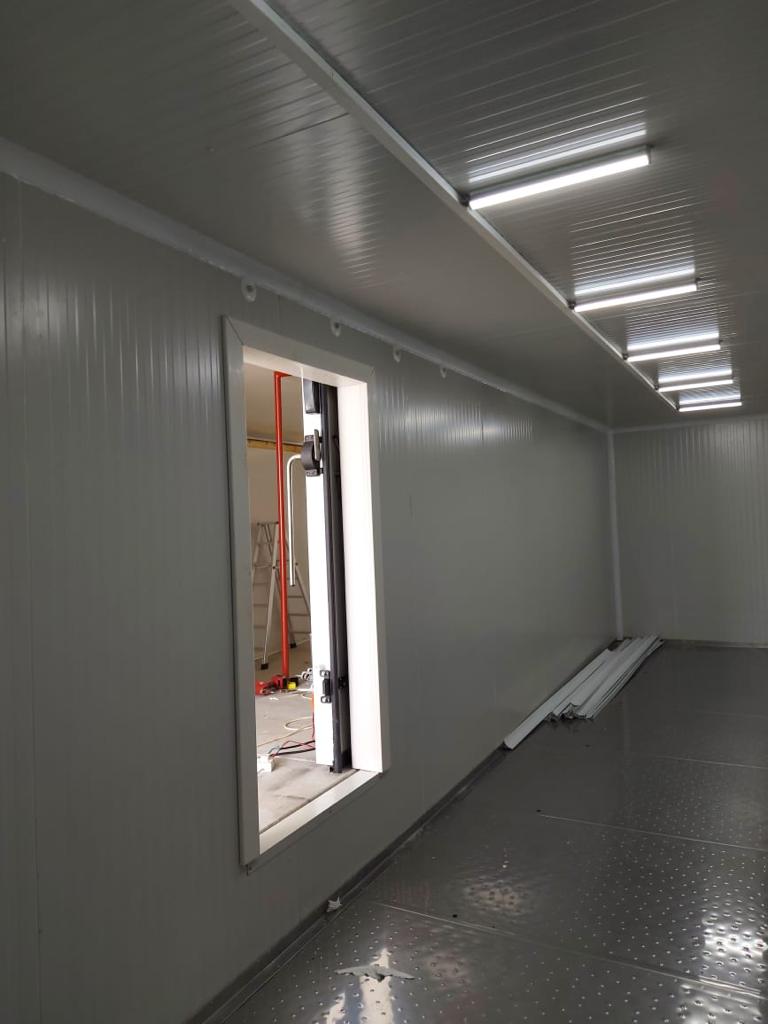

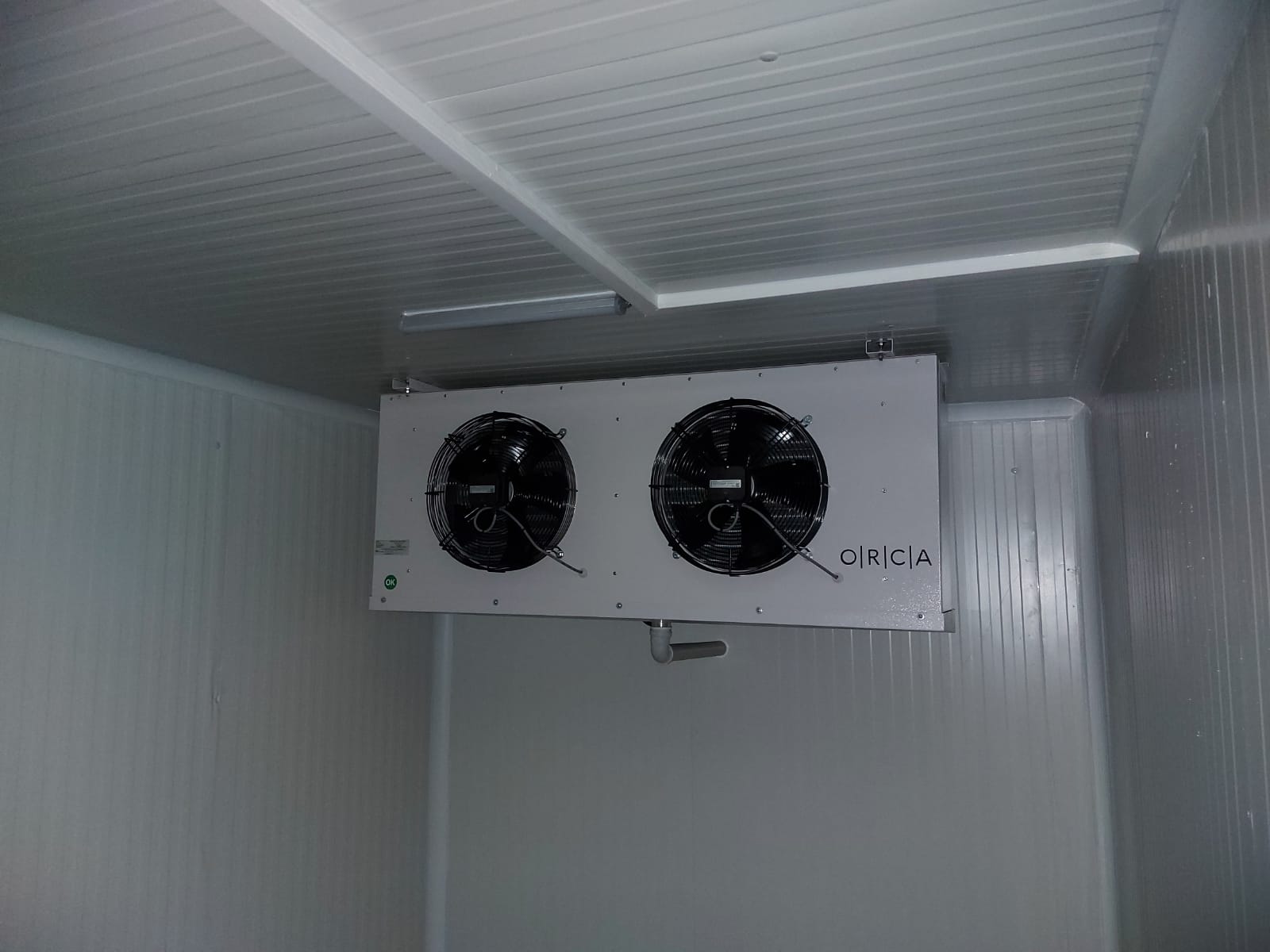

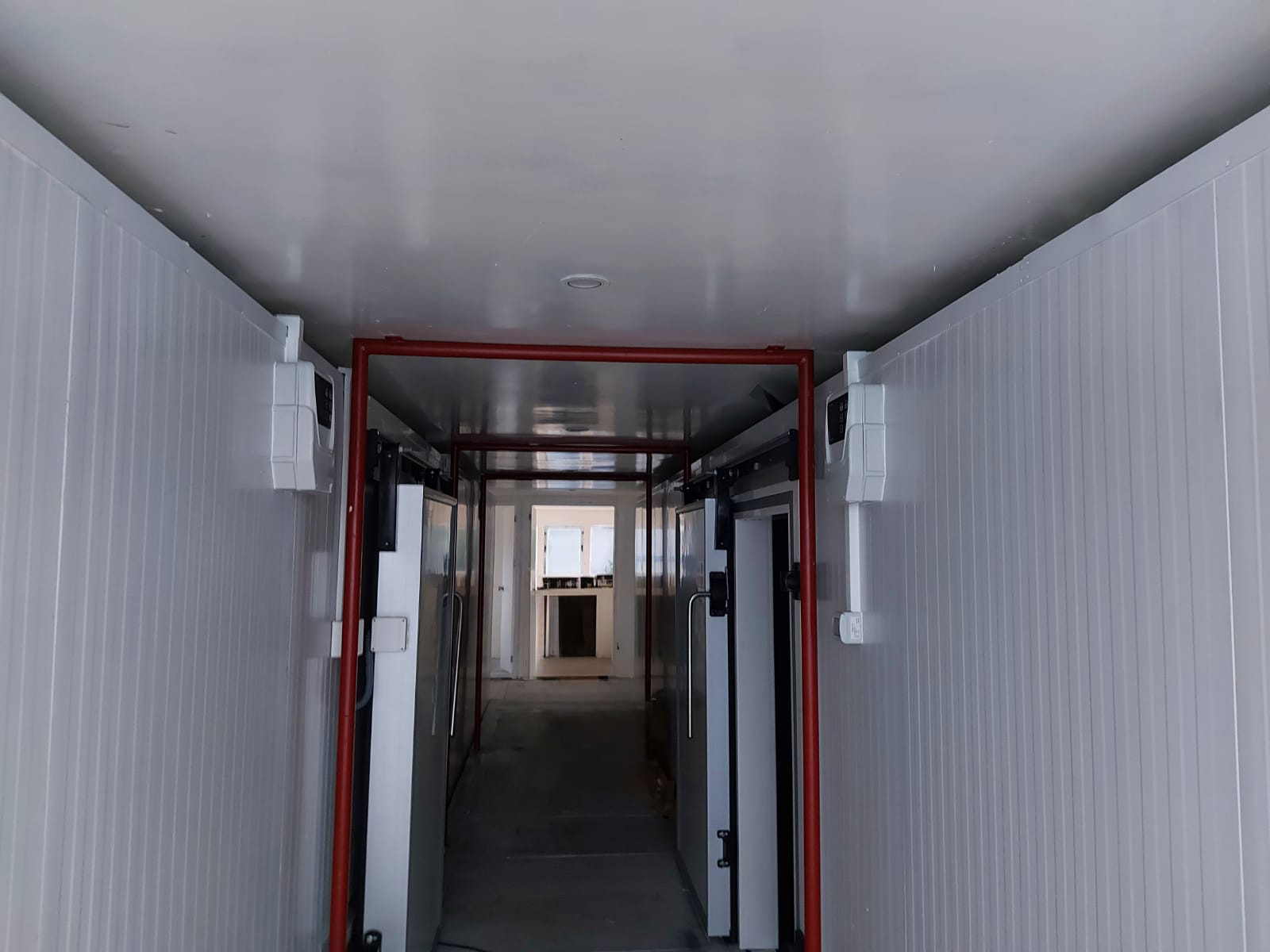

Assembly
