Cold Storage Construction
Cold Storage Construction
2019
04 Feb
Start
Our customer sent requests.
25 Feb
Preparing Project
Our project team prepared the project.
04 Mar
Offer
We sent the offer to our customer.
13 Mar
Confirmation
Our customer approved the offer.
01 Apr
Production
Production started.
24 May
Shipment
Shipment started.
15 Jul
Assembly
Assembly started.
30 Dec
Completed
Project completed.
Project Information
| ROOM TYPES : | 5 x Chiller Room – 2 x Freezer Room |
| PROJECT PURPOSE : | General Cold Storage |
| PROJECT AREA : | 117 m² |
| REFRIGERATION SYSTEMS : | Split Refrigeration Units |
| DOORS : | 8 x Hinged Cold Room Doors |
| PANELS : | 329 m² |
Customer Requests
- 38 m³ capacity 3 pcs. Chiller Room (+2 °C)
- 38 m³ capacity 1 pc. Chiller Room (+8 °C)
- 38 m³ capacity 1 pc. Chiller Room (+18 °C)
- 38 m³ capacity 2 pcs. Freezer Room (-18 °C)
Project Details
| ROOM NAME | WIDTH | LENGTH | HEIGHT | ROOM TEMPERATURE | CAPACITY |
| 3 x CHILLER ROOM | 6 m | 2,5 m | 2,5 m | +2 °C | 38 m³ |
| CHILLER ROOM | 6 m | 2,5 m | 2,5 m | +8 °C | 38 m³ |
| CHILLER ROOM | 6 m | 2,5 m | 2,5 m | +18 °C | 38 m³ |
| 2 x FREEZER ROOM | 6 m | 2,5 m | 2,5 m | -18 °C | 38 m³ |

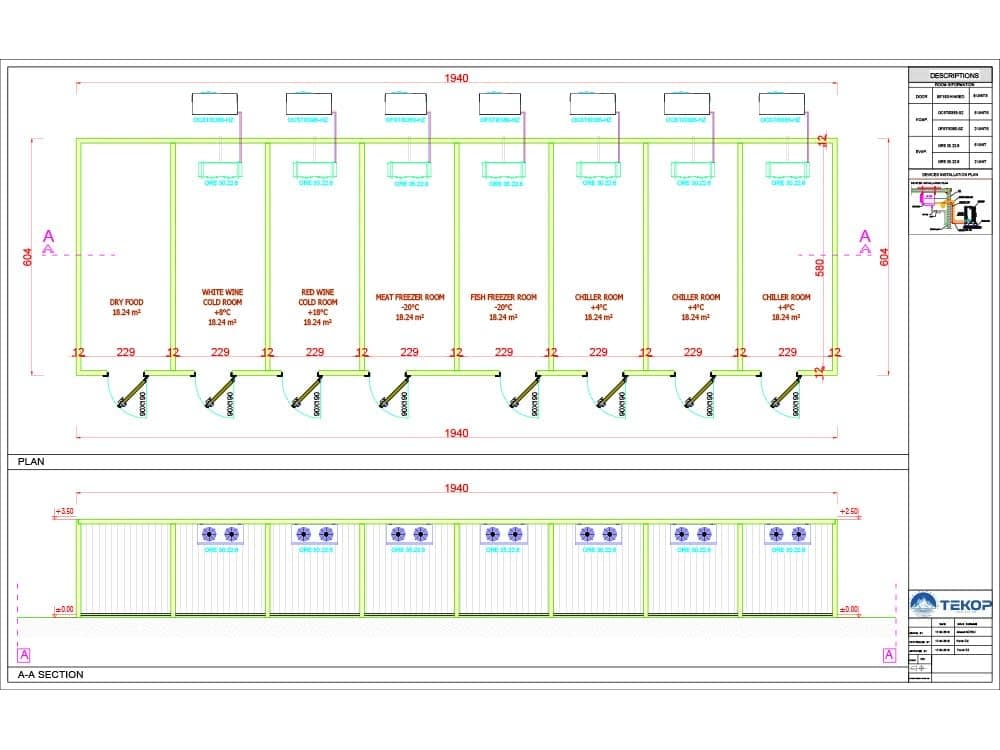

Design
Shipment
