Cold Storage Project-4
Cold Storage Project-4
2019
19 Dec
Start
Our customer sent requests.
26 Dec
Preparing Project
Our project team prepared the project.
27 Dec
Offer
We sent the offer to our customer.
2020
19 Feb
Confirmation
Our customer approved the offer.
29 Feb
Production
Production started.
30 Mar
Shipment
Shipment started.
02 Jun
Assembly
Assembly started.
02 Jul
Completed
The project completed.
Project Information
| ROOM TYPES : | 8 x Freezer Room – 7x Chiller Room |
| PROJECT PURPOSE : | General Cold Storage |
| PROJECT AREA : | 137,98 m² |
| REFRIGERATION SYSTEMS : | Split Refrigeration System |
| DOORS : | 15 x Hinged Chiller Room Door |
| PANELS : | 607,83 m² |
Customer Requests
- 28 m³ capacity 3 pc. Freezer Room (-18 °C)
- 19 m³ capacity 1 pc. Freezer Room (-18 °C)
- 18 m³ capacity 2 pc. Freezer Room (-18 °C)
- 9 m³ capacity 1 pc. Freezer Room (-18 °C)
- 8 m³ capacity 1 pc. Freezer Room (-18 °C)
- 29 m³ capacity 1 pc. Chiller Room (+2 °C)
- 41 m³ capacity 1 pc. Chiller Room (+2 °C)
- 33 m³ capacity 1 pc. Chiller Room (+2 °C)
- 19 m³ capacity 1 pc. Chiller Room (+2 °C)
- 21 m³ capacity 1 pc. Chiller Room (+2 °C)
- 6 m³ capacity 1 pc. Chiller Room (+2 °C)
- 8 m³ capacity 1 pc. Chiller Room (+2 °C)
Project Detaıls
| ROOM NAME | AREA | HEIGHT | ROOM TEMPERATURE | CAPACITY |
| FREEZER ROOM-1 | 11.4 m² | 2.5 m | -18 °C | 28 m³ |
| FREEZER ROOM-2 | 11.4 m² | 2.5 m | -18 °C | 28 m³ |
| FREEZER ROOM-3 | 11.5 m² | 2.5 m | -18 °C | 29 m³ |
| FREEZER ROOM-4 | 7.6 m² | 2.5 m | -18 °C | 19 m³ |
| FREEZER ROOM-5 | 7.3 m² | 2.5 m | -18 °C | 18 m³ |
| FREEZER ROOM-6 | 3.7 m² | 2.5 m | -18 °C | 9 m³ |
| FREEZER ROOM-7 | 3.2 m² | 2.5 m | -18 °C | 8 m³ |
| FREEZER ROOM-8 | 9.9 m² | 1.9 m | -18 °C | 18 m³ |
| CHILLER ROOM-1 | 11.5 m² | 2.5 m | +2 °C | 7 m³ |
| CHILLER ROOM-2 | 16.4 m² | 2.5 m | +2 °C | 7 m³ |
| CHILLER ROOM-3 | 13.4 m² | 2.5 m | +2 °C | 7 m³ |
| CHILLER ROOM-4 | 7.6 m² | 2.5 m | +2 °C | 7 m³ |
| CHILLER ROOM-5 | 8.5 m² | 2.5 m | +2 °C | 7 m³ |
| CHILLER ROOM-6 | 2.5 m² | 2.5 m | +2 °C | 7 m³ |
| CHILLER ROOM-7 | 3.2 m² | 2.5 m | +2 °C | 7 m³ |

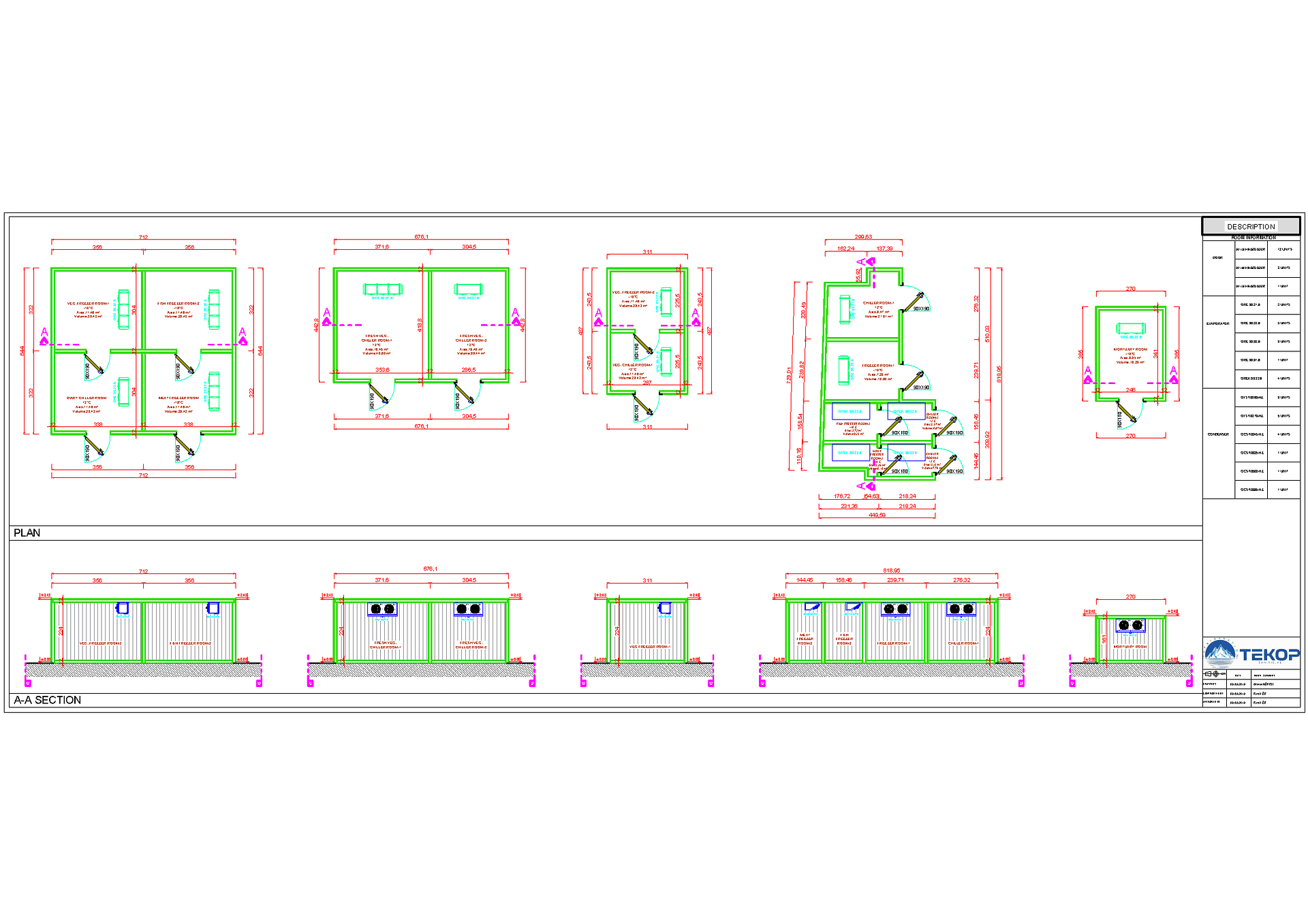

Design
