Cold Storage Project-6
Cold Storage Project-6
2021
12 Nov
Start
Our customer sent requests.
15 Nov
Preparing Project
Our project team prepared the project.
17 Nov
Offer
We sent the offer to our customer.
08 Dec
Confirmation
Our customer approved the offer.
10 Dec
Production
Production started.
Project Information
| ROOM TYPES : | 2 x Chiller Room, 1 x Freezer Room |
| PROJECT PURPOSE : | General Cold Storage |
| PROJECT AREA : | 17,3 m² |
| REFRIGERATION SYSTEMS : | Split Refrigeration System |
| COLD ROOM DOORS : | 3 x Cold Room Hinged Door |
| COLD ROOM PANELS : | 80 m² |
Customer Requests
- 4,33 m³ capacity 1 pc. Chiller Room (+2°C/+4°C)
- 10,20 m³ capacity 1 pc. Chiller Room (+2°C/+4°C)
- 2,80 m³ capacity 1 pc. Freezer Room (-18°C)
Project Detaıls
| ROOM NAME | AREA | HEIGHT | ROOM TEMPERATURE | CAPACITY |
| CHILLER ROOM-1 | 4,33 m² | 2,30 m | +2 °C/+4 °C | 9,97 m³ |
| CHILLER ROOM-2 | 10,20 m² | 2,30 m | +2 °C/+4 °C | 23,46 m³ |
| FREEZER ROOM | 2,80 m² | 2,30 m | -18 °C | 6,45 m³ |

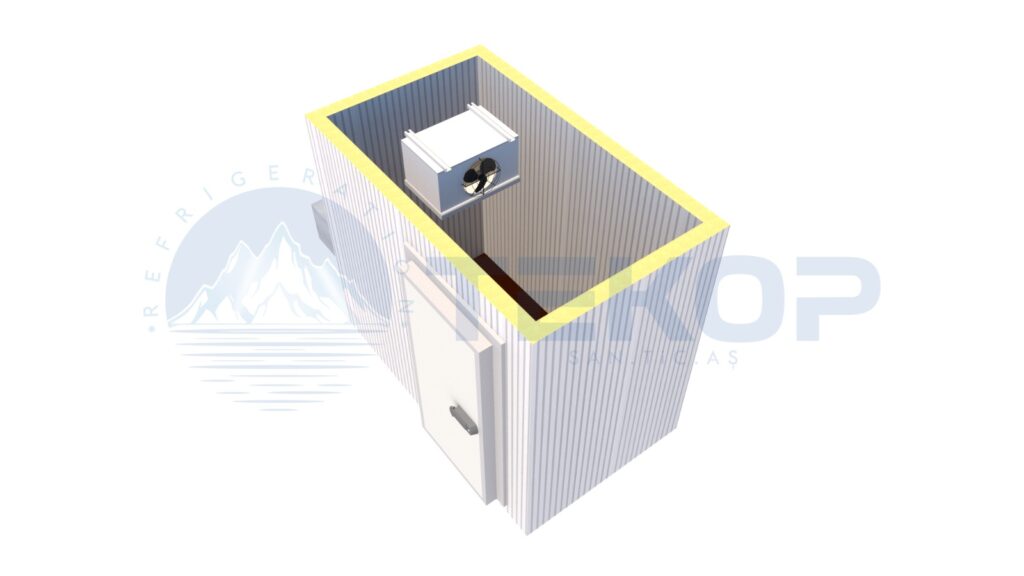

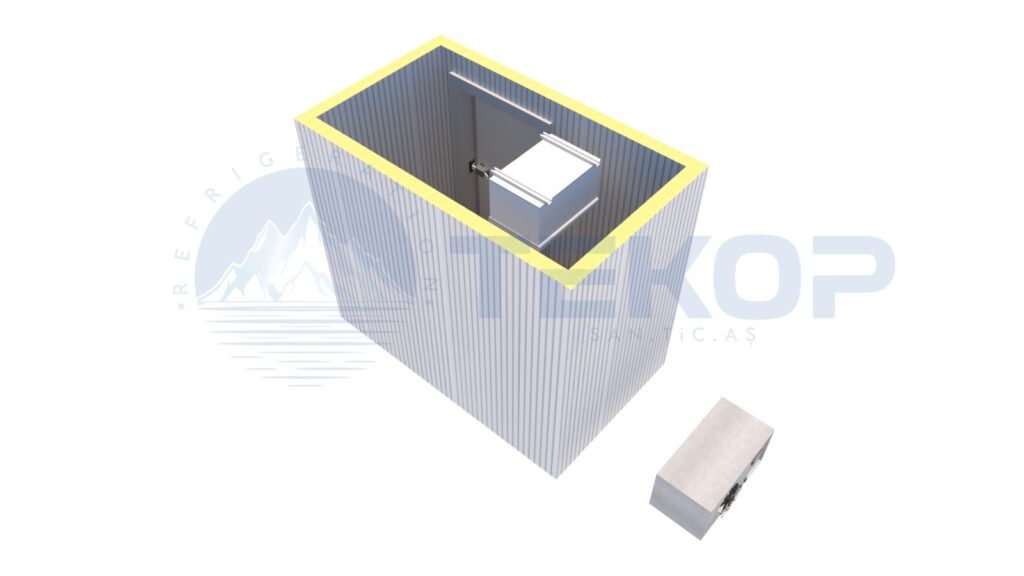

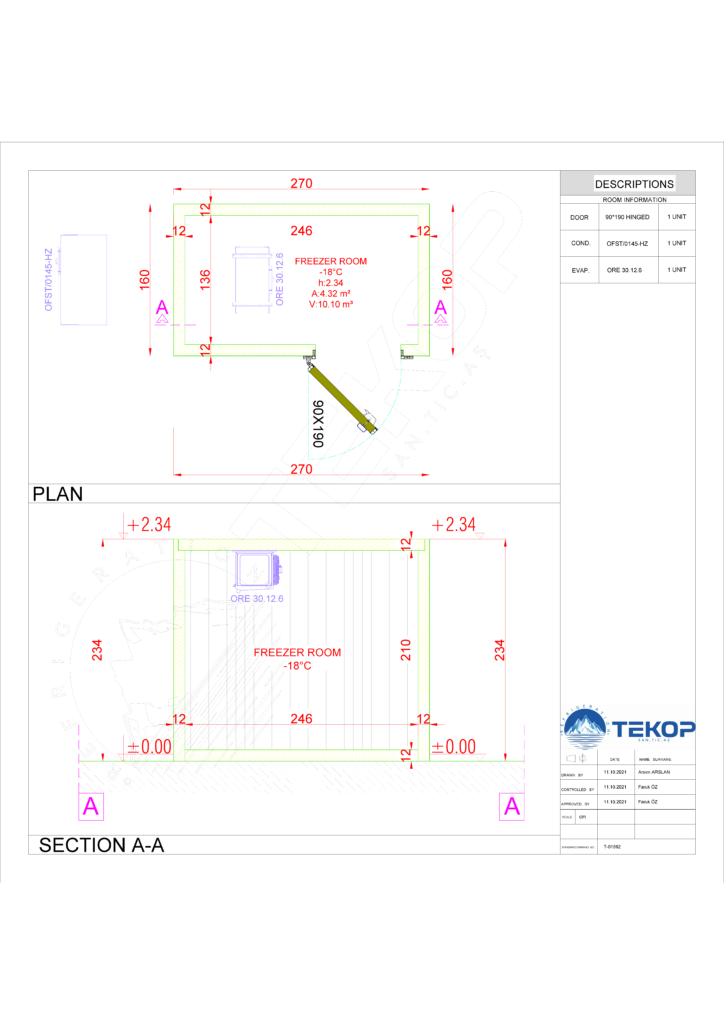

Design
