Maldives Cold Store Plan

Cold Storage Project-9

Project Information

ROOM TYPES : 1 x Chiller Room, 1 x Freezer Room
PROJECT PURPOSE : General Cold Storage
PROJECT AREA : 14,75 m²
REFRIGERATION SYSTEMS : Split Refrigeration System
COLD ROOM DOORS : 1 x Hinged Cold Room Door, 1 x Dual Wing Cold Room Hinged Door
COLD ROOM PANELS : 78,57 m²



Customer Requests

  • 17,55 m³ capacity 1 pc. Chiller Room (+2°C)
  • 17,55 m³ capacity 1 pc. Freezer Room (-18°C)

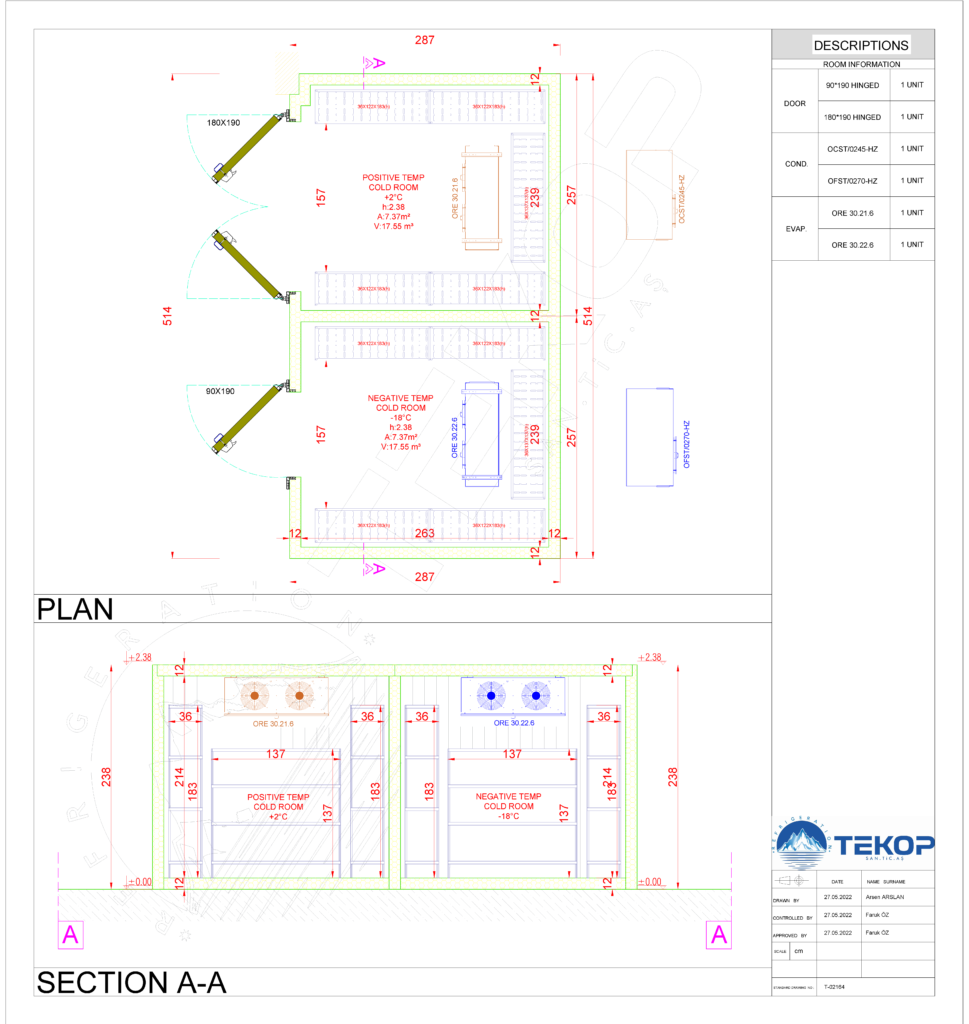

Project Detaıls

ROOM NAME AREA HEIGHT ROOM TEMPERATURE CAPACITY
CHILLER ROOM 7,37 m² 2,38 m +2°C 17,55 m³
FREEZER ROOM 7,37 m² 2,38 m -18°C 17,55 m³

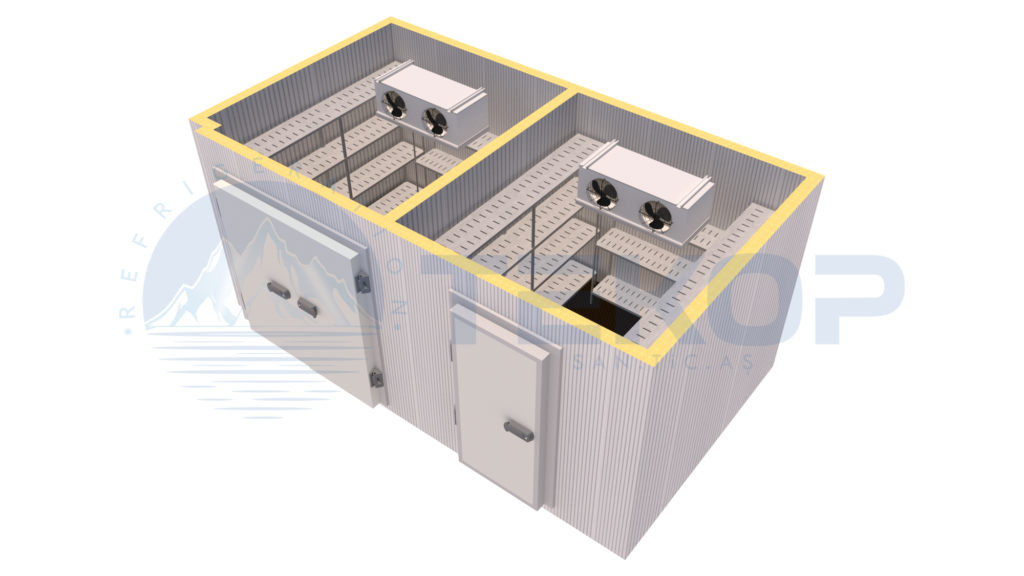

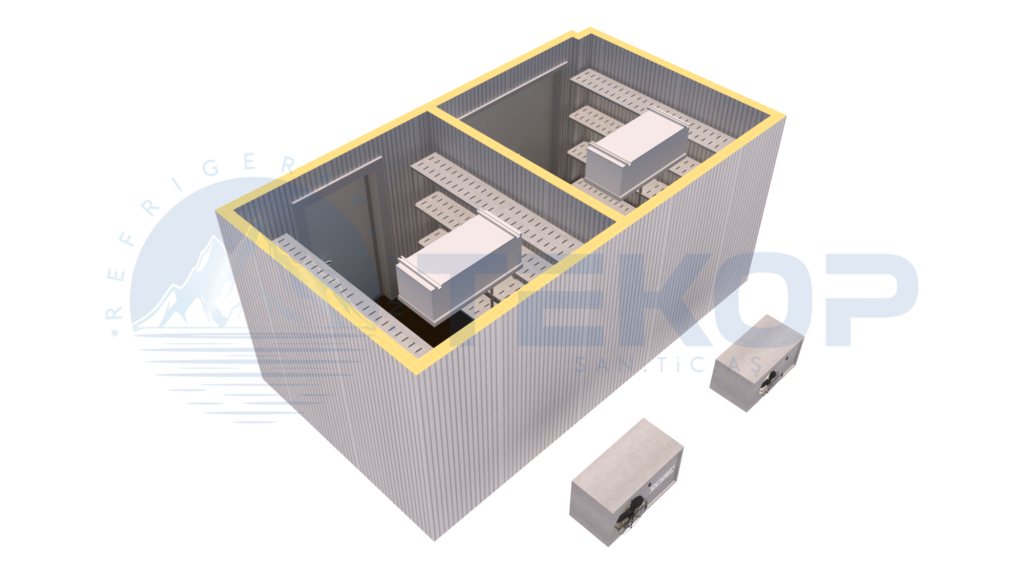

Design
