Cold Storage Project
Cold Storage Project
2018
12 Dec
Start
Our customer sent requests.
19 Dec
Preparing Project
Our project team prepared the project.
20 Dec
Offer
We sent the offer to our customer.
2019
16 Sep
Confirmation
Our customer approved the offer.
19 Sep
Production
Production started.
19 Oct
Shipment
Shipment started.
09 Nov
Assembly
Assembly started.
09 Dec
Completed
The project completed.
Project Information
| ROOM TYPES : | 3 x Chiller Room – 2 x Freezer Room |
| PROJECT PURPOSE : | General Cold Storage |
| PROJECT AREA : | 65 m² |
| REFRIGERATION SYSTEMS : | ORCA Split Refrigeration Unit |
| DOORS : | Hinged Chiller Room Door |
| PANELS : | 267 m² |
Customer Requests
- 53 m³ capacity 1 pc. Chiller Room (+2 °C)
- 36 m³ capacity 1 pc. Chiller Room (+2 °C)
- 16 m³ capacity 1 pc. Chiller Room (+2 °C)
- 36 m³ capacity 1 pc. Freezer Room (-18 °C)
- 23 m³ capacity 1 pc. Freezer Room (-18 °C)
Project Details
| ROOM NAME | WIDTH | LENGTH | HEIGHT | ROOM TEMPERATURE | CAPACITY |
| CHILLER ROOM -1 | 5,7 m | 3,6 m | 2,6 m | +2 °C | 53 m³ |
| CHILLER ROOM -2 | 5,7 m | 2,4 m | 2,6 m | +2 °C | 36 m³ |
| CHILLER ROOM -3 | 2,4 m | 2,4 m | 2,6 m | +2 °C | 16 m³ |
| FREEZER ROOM -1 | 5,7 m | 2,4 m | 2,6 m | -18 °C | 36 m³ |
| FREEZER ROOM -2 | 2,4 m | 3,7m | 2,6 m | -18 °C | 23 m³ |
Design

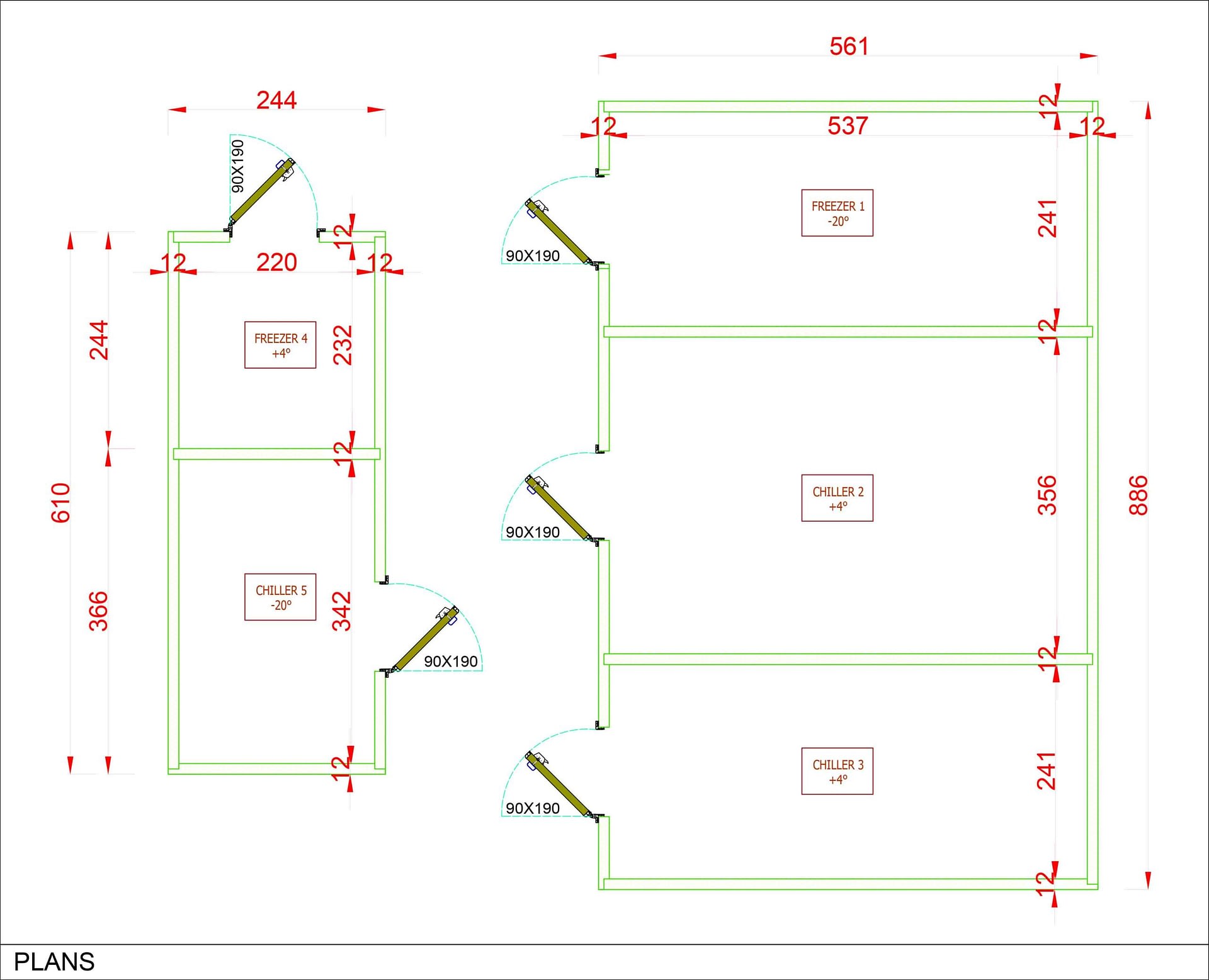

Maldives Cold Store Plan
Shipment
