Cold Store Construction Project
Cold Store Construction Project
2019
22 Mar
Start
Our customer sent requests.
26 Mar
Preparing Project
Our project team prepared the project.
29 Mar
Offer
We sent the offer to our customer.
Project Information
| PROJECT LOCATION : | Malta |
| ROOM TYPES : | Chiller Room – 2 x Freezer Room |
| PROJECT PURPOSE : | General Cold Store |
| PROJECT AREA : | 293 m² |
| REFRIGERATION SYSTEMS : | ORCA Split Refrigeration Units |
| DOORS : | 3 x Sliding Cold Room Door |
| PANELS : | 796 m² |
Customer Requests
- 413 m³ capacity Chiller Room (+2 °C)
- 411 m³ capacity Freezer Room (-18 °C)
- 508 m³ capacity Freezer Room (-18 °C)
- Shelf Systems for the Cold Store
Project Details
| ROOM NAME | WIDTH | LENGTH | HEIGHT | ROOM TEMPERATURE | CAPACITY |
| CHILLER ROOM | 11,7 m | 7,8 m | 4,6 m | +2 °C | 413 m³ |
| FREEZER ROOM-1 | 11,6 m | 7,8 m | 4,6 m | -18 °C | 411 m³ |
| FREEZER ROOM-2 | 14,3 m | 7,8 m | 4,6 m | -18 °C | 508 m³ |

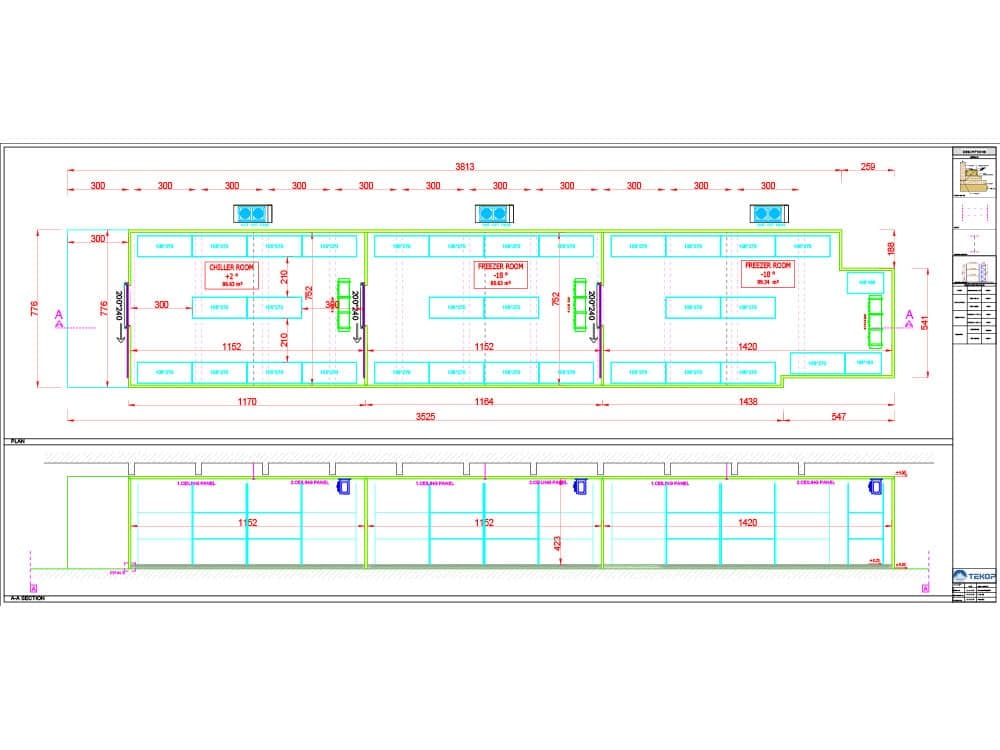

Design
