Finland Chiller and Freezer Room Project

Project Information

PROJECT LOCATION :  Finland
ROOM TYPES : 1 x Chiller Room , 1 x Freezer Room
PROJECT PURPOSE : General Cold Storage
PROJECT AREA : 33,1 m²
REFRIGERATION SYSTEMS : Split Refrigeration System

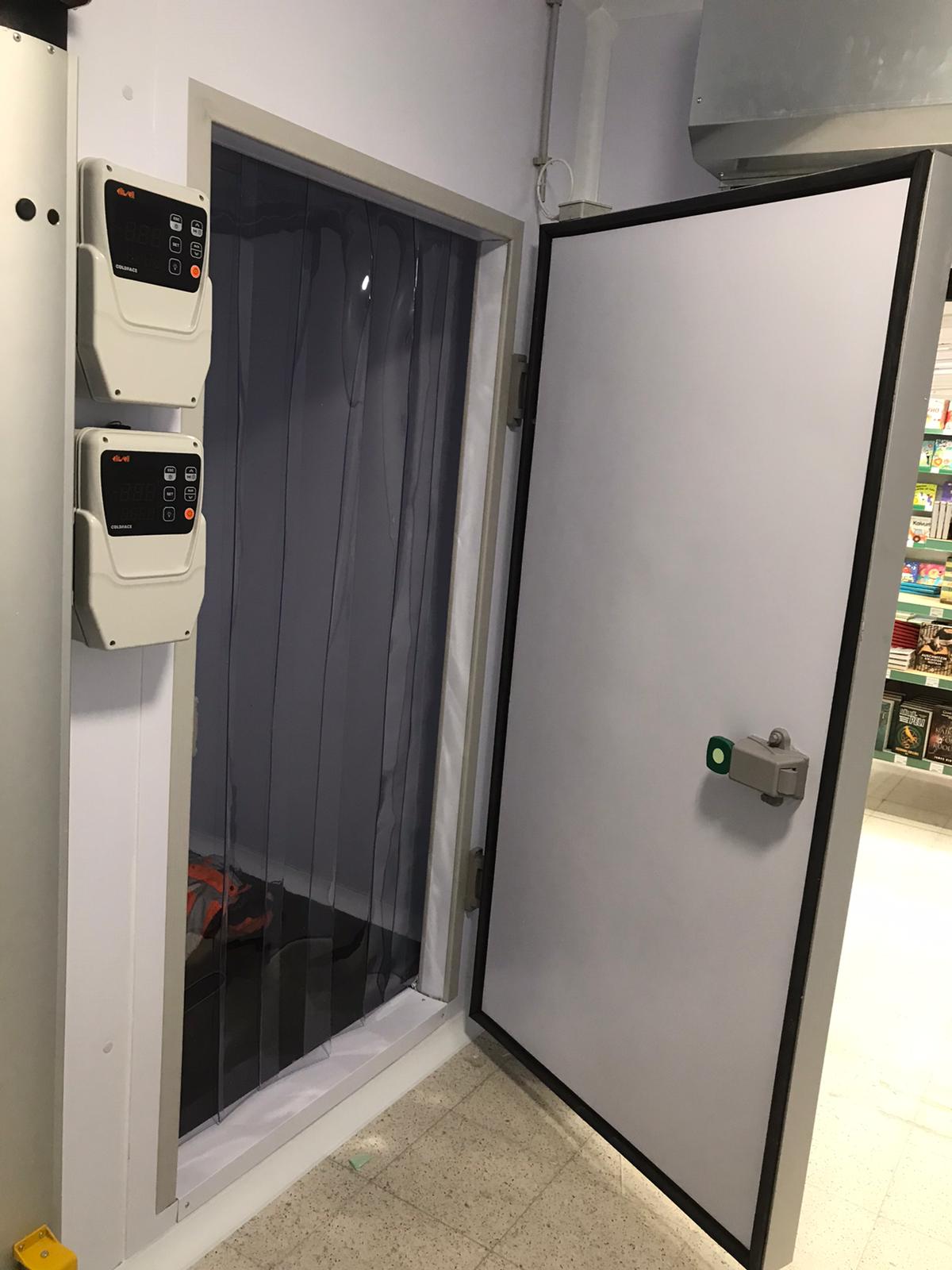

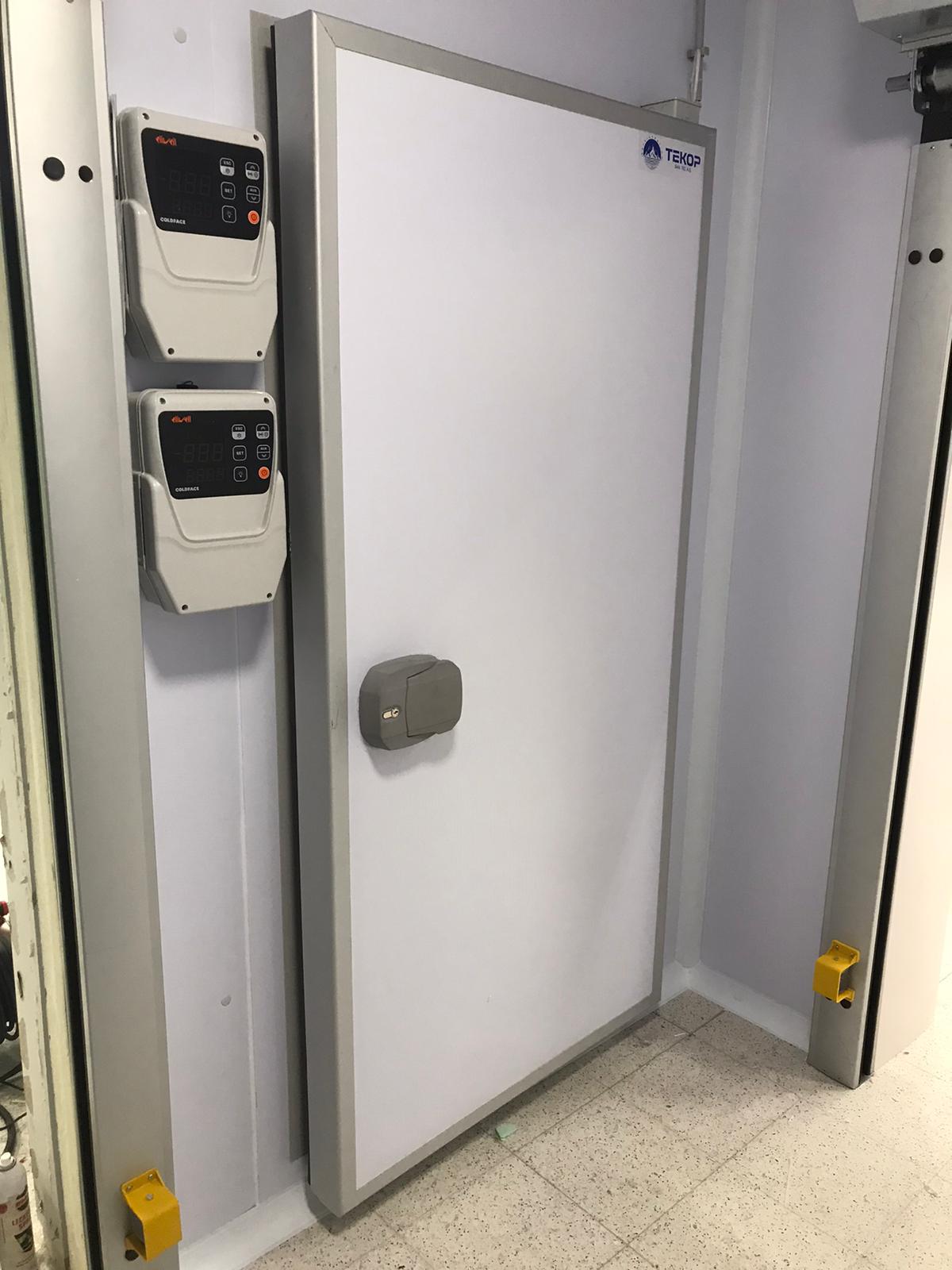

DOORS : 2 x Hinged Chiller Room Door
PANELS : 65,83 m²

Customer Requests

  • 10,15 m³ capacity 1 pc. Chiller Room (+2 °C)
  • 2,1 m³ capacity 1 pc. Freezer Room (-18 °C)

Project Detaıls

ROOM NAME AREA HEIGHT ROOM TEMPERATURE CAPACITY
CHILLER ROOM 10,15 m² 2.7 m +2 °C 27,4 m³
FREEZER ROOM 2,1 m² 2.7 m -18 °C 5,7 m³

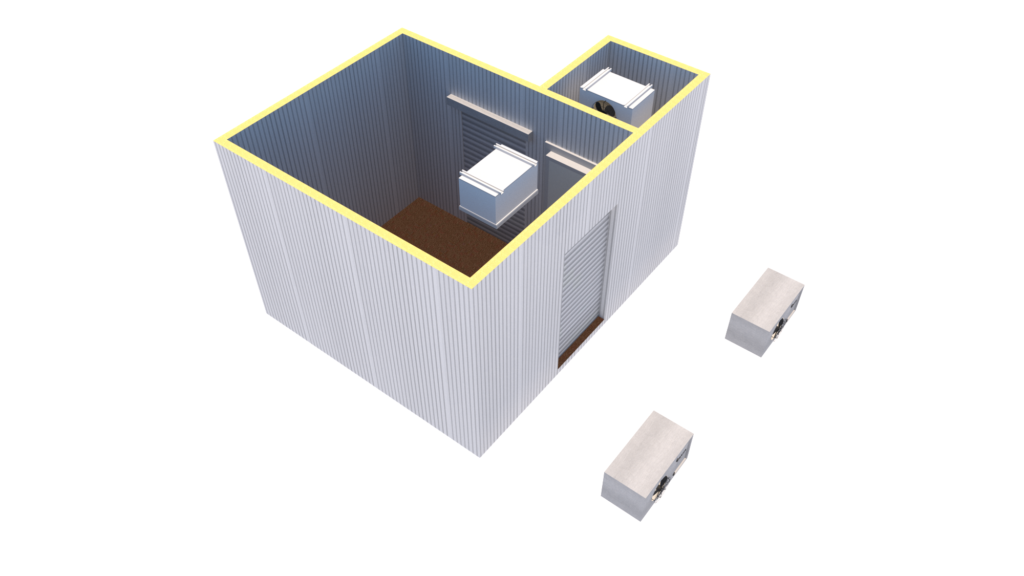

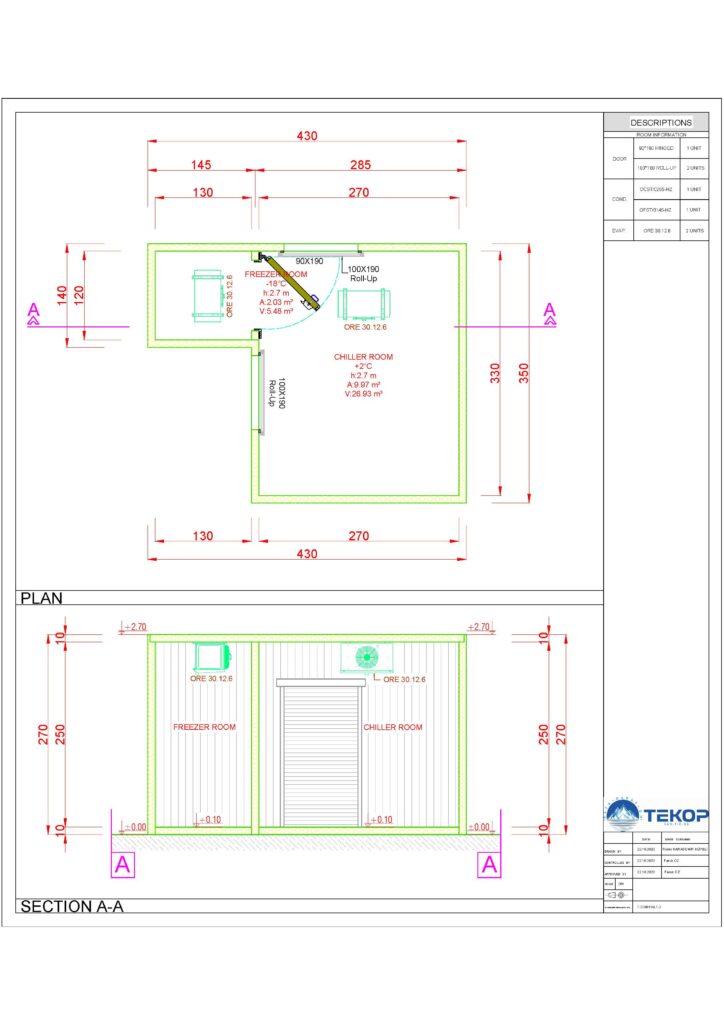

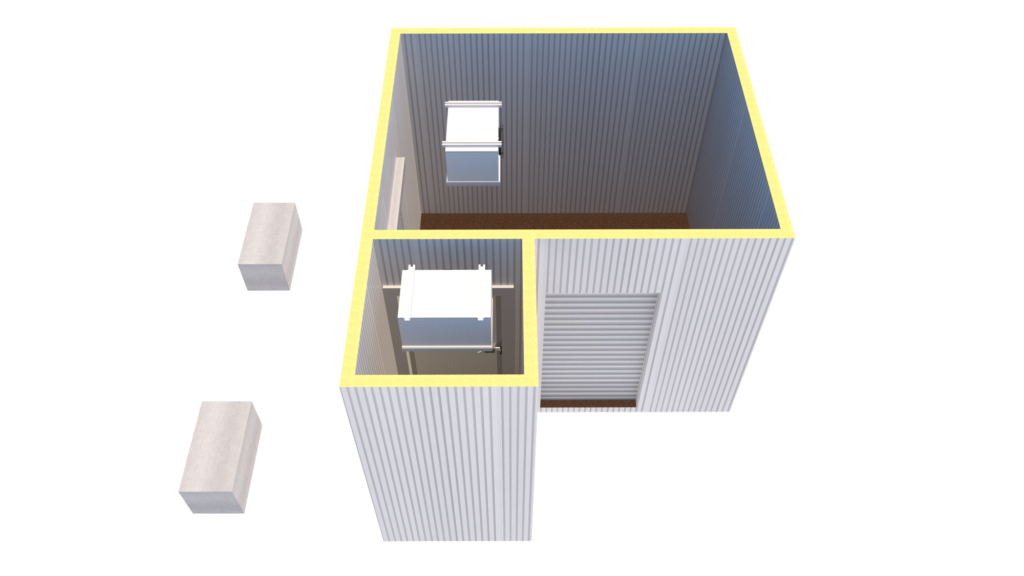

Design

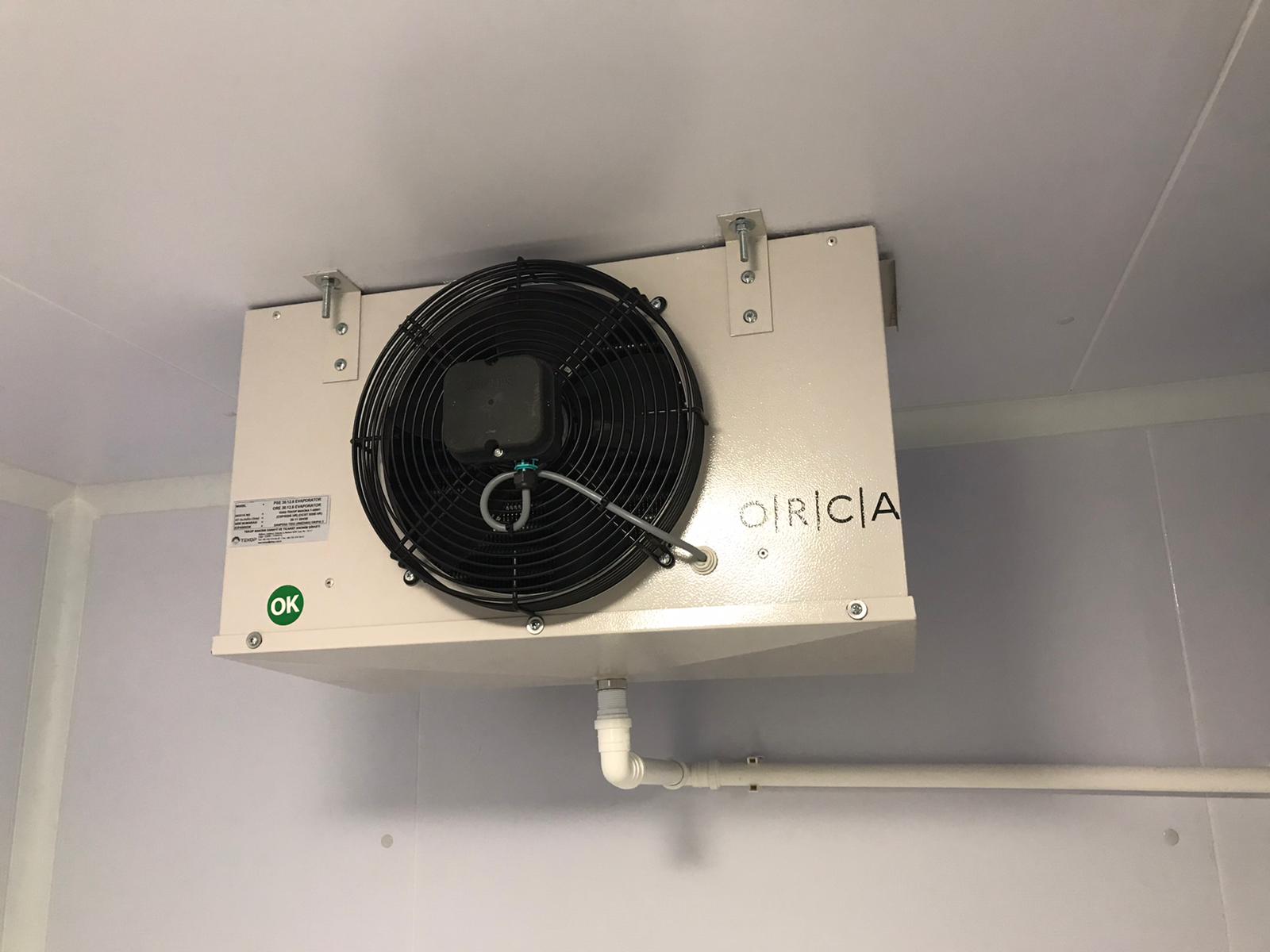

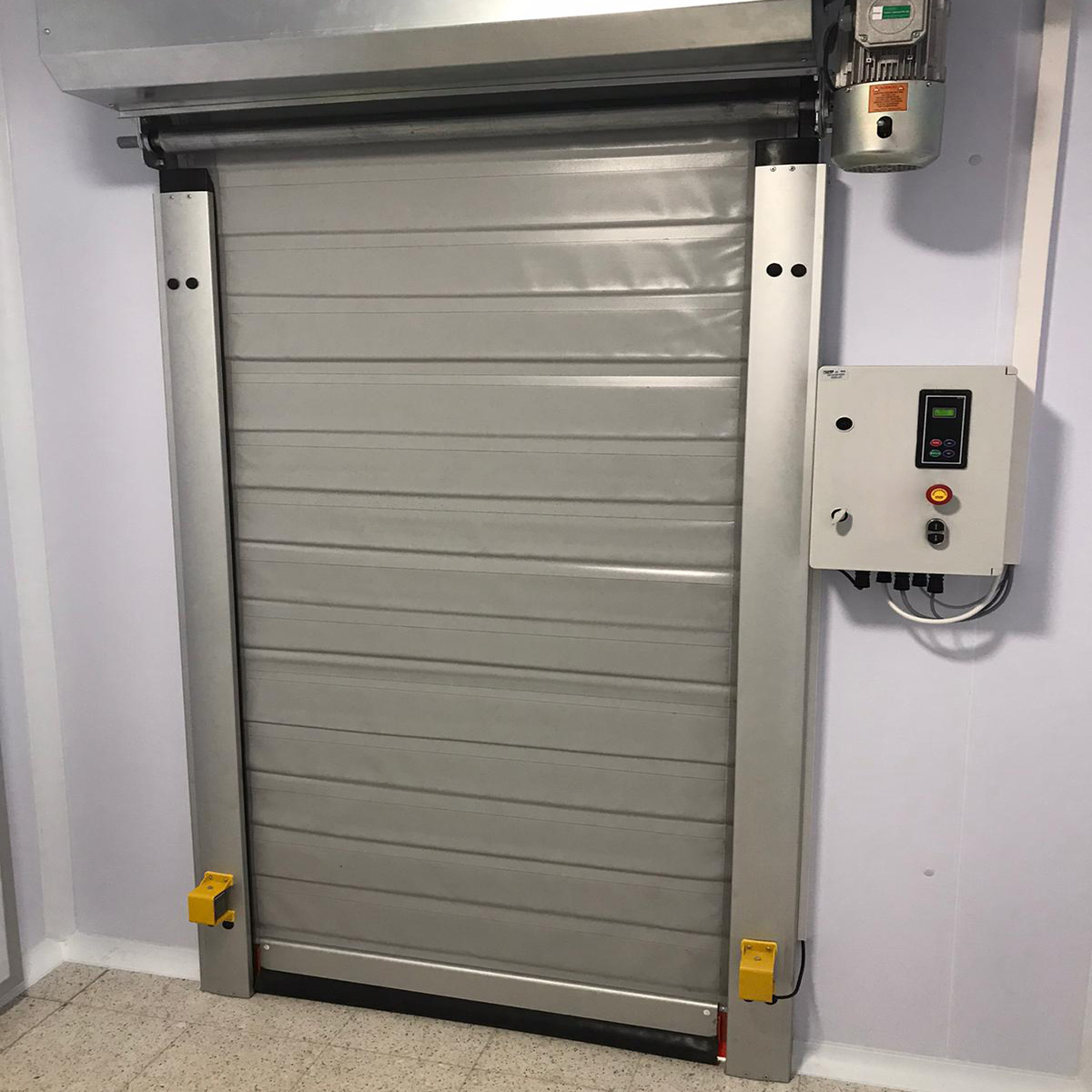

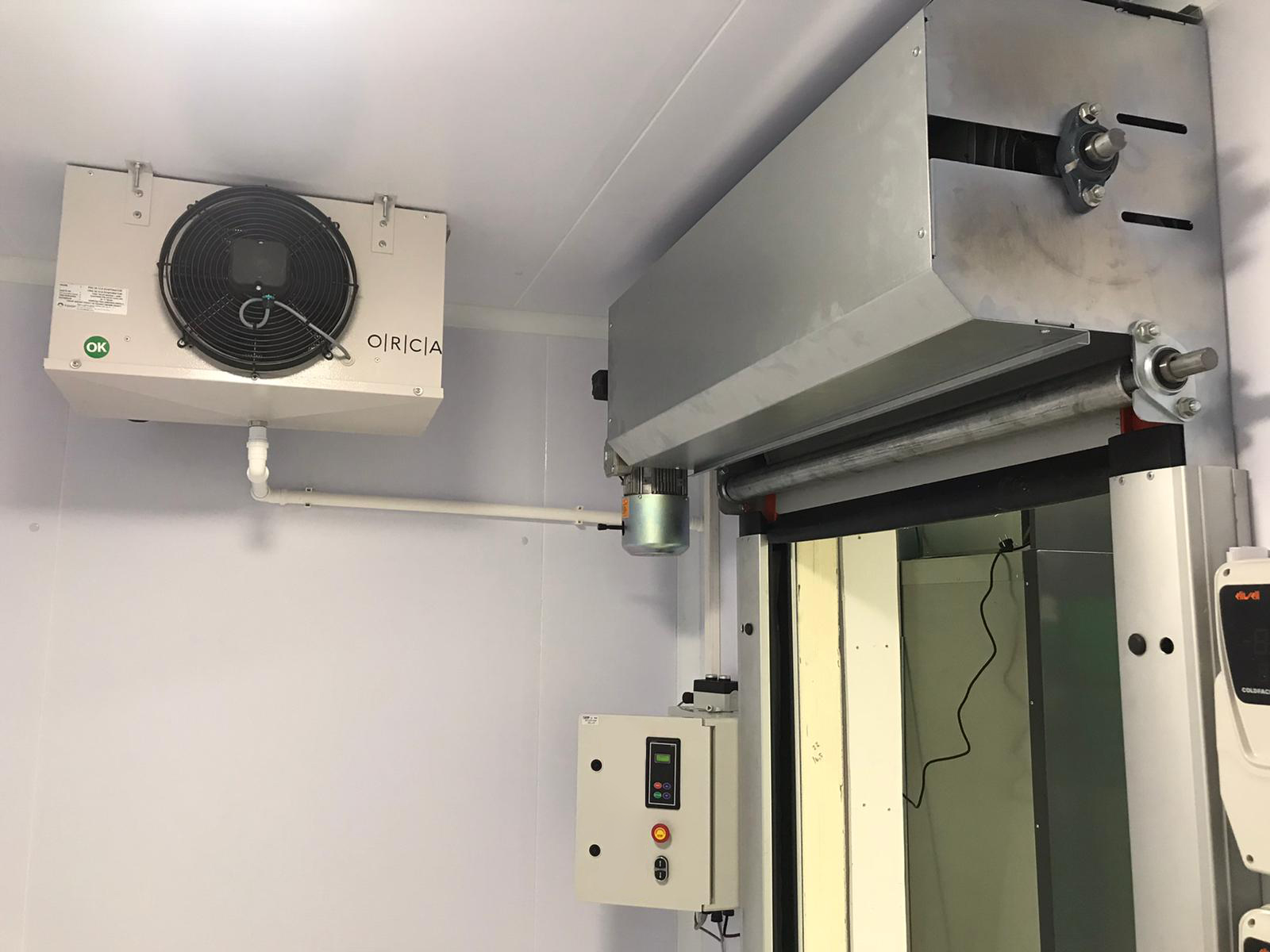

Assembly
