Maldives Cold Store Plan

Food Cold Storage Project

Project Information

ROOM TYPES : 12 x Chiller Room, 2 x Freezer Room, 1 x Corridor, 1x Loading Area
PROJECT PURPOSE : General Cold Storage
PROJECT AREA : 165,75 m²

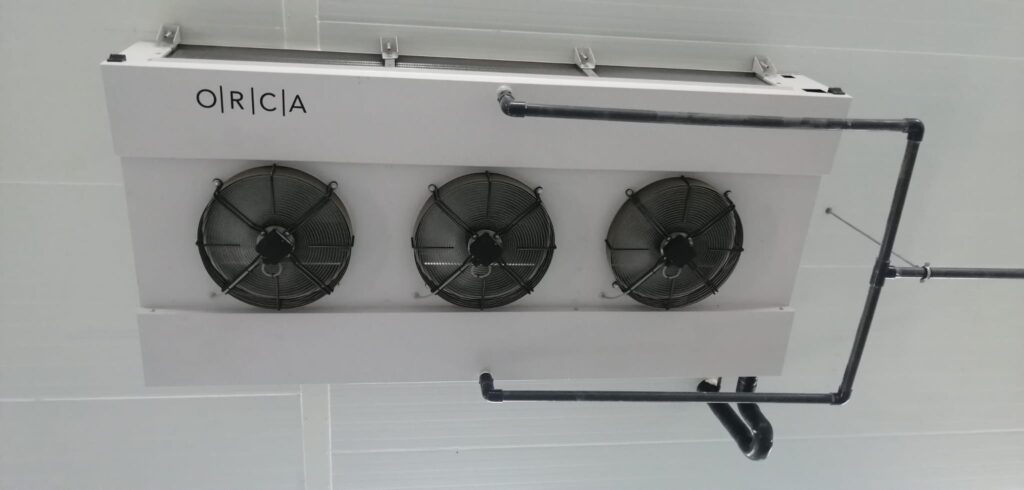

REFRIGERATION SYSTEMS : Split Refrigeration System
COLD ROOM DOORS : 14 x Cold Room Sliding Door, 3 x Hinged Door, 1 x Roll-up Door, 6 x Sectional Door
COLD ROOM PANELS : 430 m²

Customer Requests

  • 1142 m³ capacity 8 pc. Chiller Room (+2°C)
  • 1142 m³ capacity 2 pc. Freezer Room (-20°C)
  • 575,70 m³ capacity 4 pc. Chiller Room (+2°C)
  • 1799,3 m³ capacity 1 pc . Corridor (+10°C/+12°C)
  • 3140,4 m³ capacity 1 pc. Loading Area (+10°C/+12°C)

Project Detaıls

ROOM NAME AREA HEIGHT ROOM TEMPERATURE CAPACITY
CHILLER ROOM 1-8 134,36 m² 8,50 m +2 °C 1142,06 m³
CHILLER ROOM 9-12 67,73 m² 8,50 m +2 °C 575,70 m³
FREEZER ROOM 1-2 134,36 m² 8,50 m -20 °C 1142,06 m³

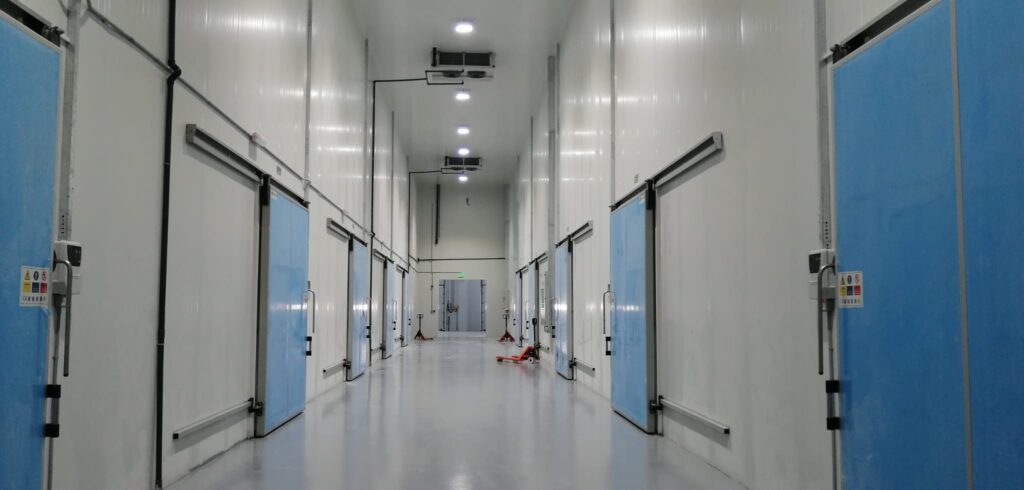

CORRIDOR 211,68 m² 8,50 m +10 °C / +12 °C 1799,28 m³

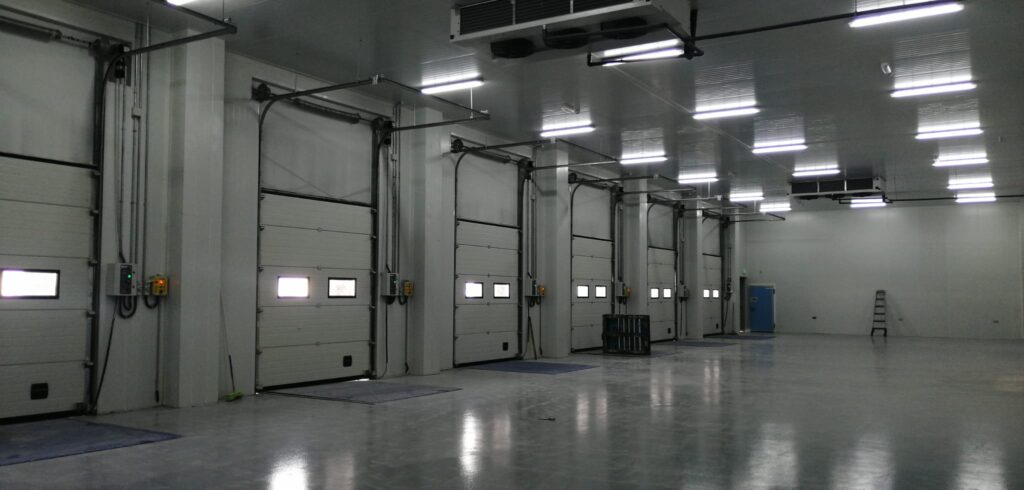

LOADING AREA 369,46 m² 8,50 m +10 °C / +12 °C 3140,41 m³

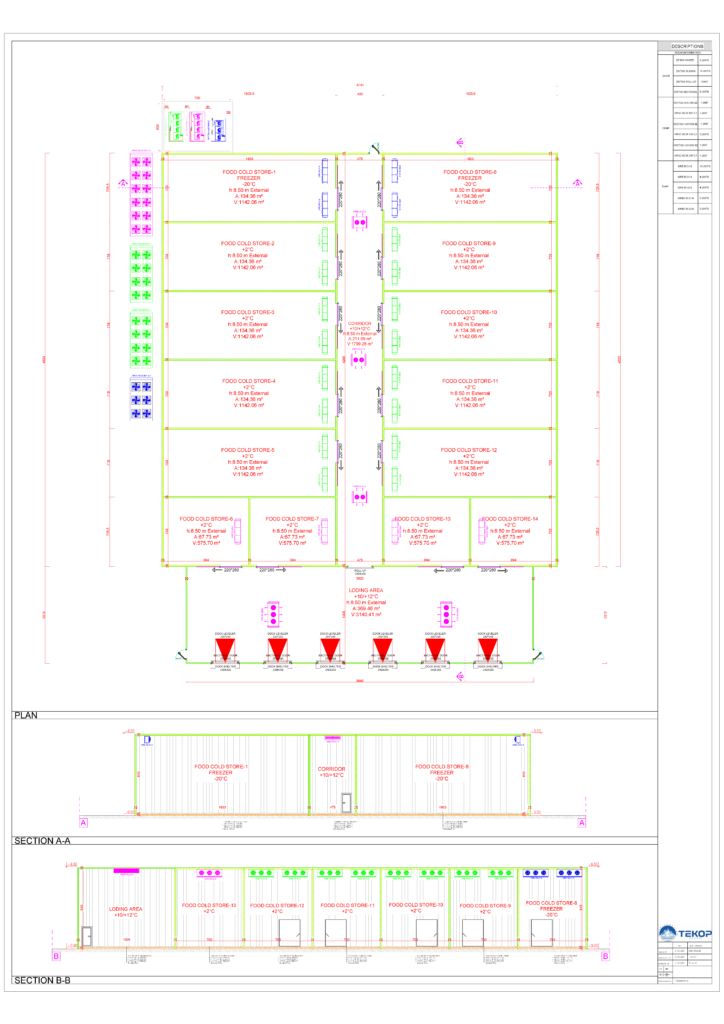

Design
