Guinea Freezer Room Project

Project Information

PROJECT LOCATION : Guinea
ROOM TYPES : 1 x Freezer Room
PROJECT PURPOSE : General Cold Storage
PROJECT AREA : 165 m²

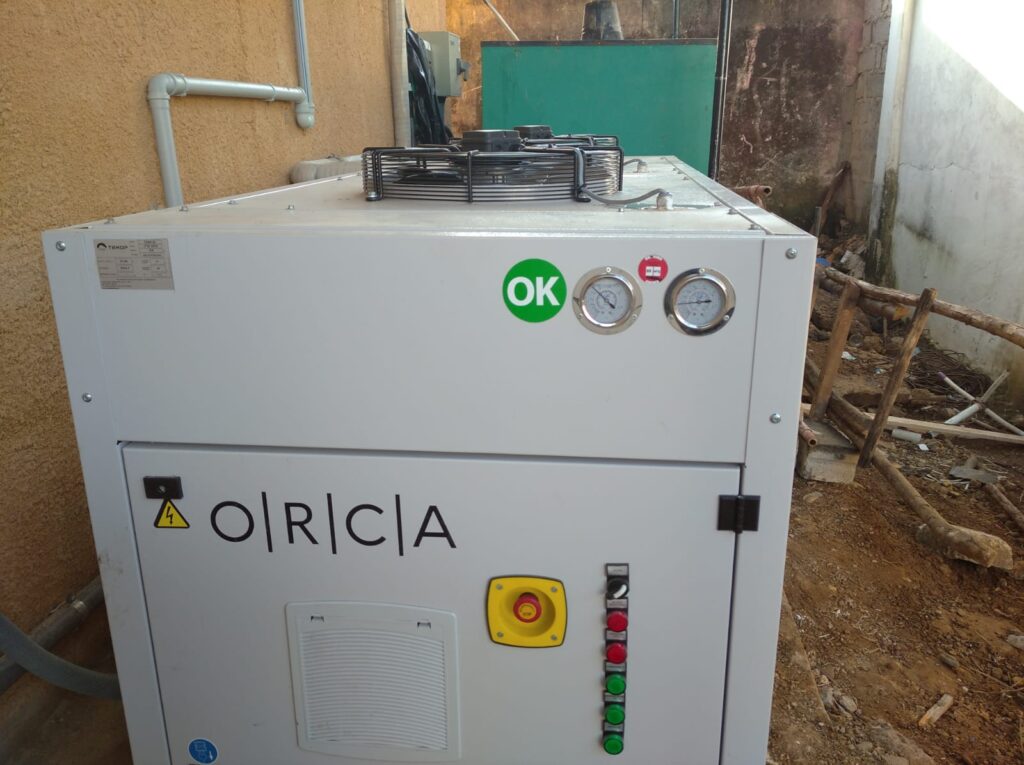

REFRIGERATION SYSTEMS : Split Refrigeration System
DOORS : 1 x Sliding Door
PANELS : 429,30 m²

Customer Requests

  • 825 m³ capacity 1 pc. Freezer Room (-18 °C)

Project Detaıls

ROOM NAME AREA HEIGHT ROOM TEMPERATURE CAPACITY
FREEZER ROOM 165 m² 5,00 m -18 °C 825 m³

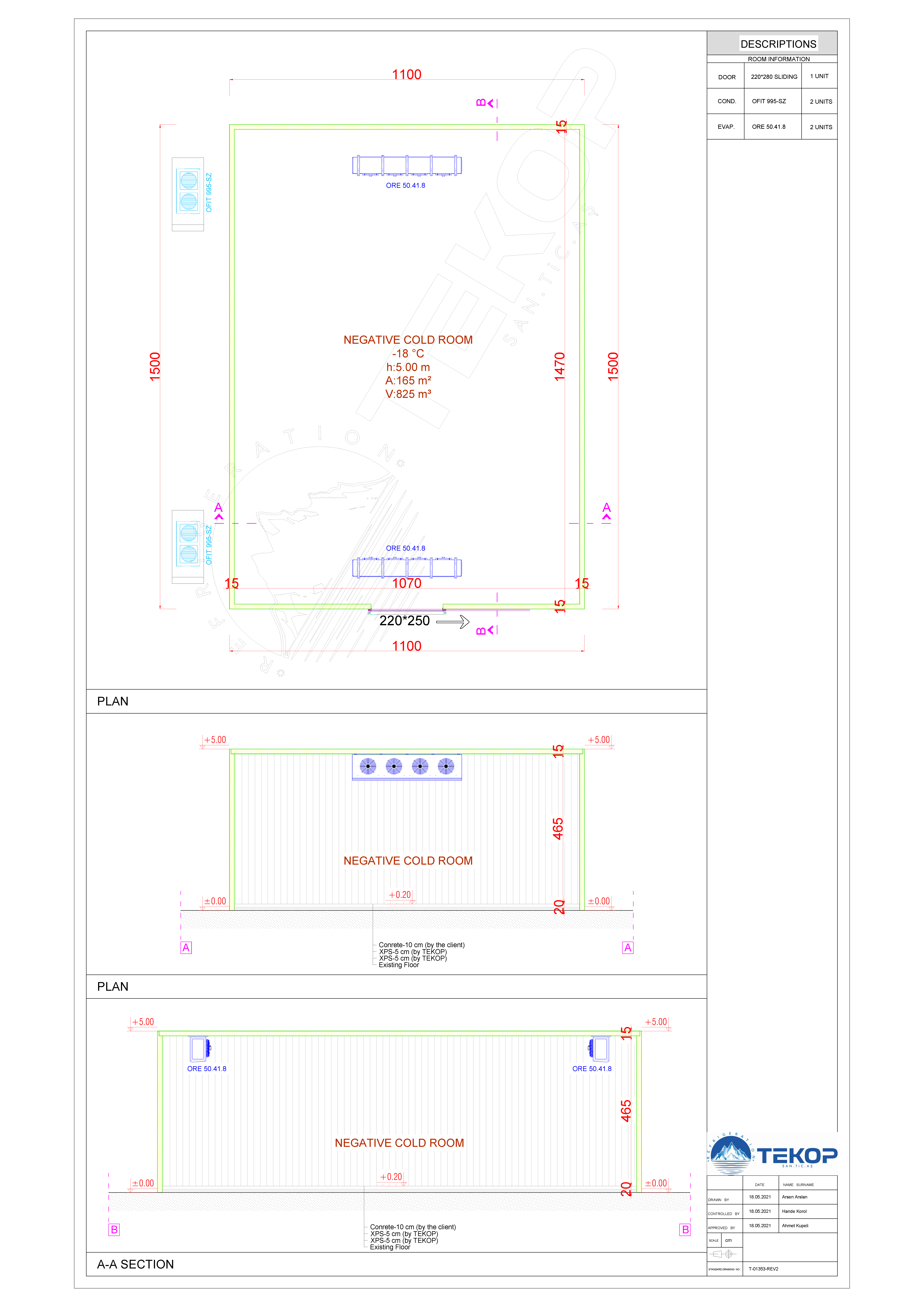

Design

Shipment
