Kazakhistan Chiller & Freezer Rooms Design

Kazakhistan Chiller & Freezer Rooms Design

Project Information

PROJECT LOCATION : Kazakhistan
ROOM TYPES : 5 x Chiller Rooms – 4 x Freezer Rooms
PROJECT PURPOSE : General Chiller & Freezer Rooms
PROJECT AREA :
REFRIGERATION SYSTEMS : 9 x Split Refrigeration System
DOORS : 9 x Hinged Cold Room Doors
PANELS : 281 m²

Customer Requests

  • Total 99 m³ capacity 5 pcs. Chiller Rooms (+2 °C)
  • Total 49 m³ capacity 4 pcs. Freezer Rooms (-18 °C)

Project Details

ROOM NAME WIDTH LENGTH HEIGHT ROOM TEMPERATURE CAPACITY
CHILLER ROOM 1 3,6 m 3 m 2,4 m +2 °C 26 m³
CHILLER ROOM 2 4,1 m 2,5 m 2,4 m +2°C 25 m³
CHILLER ROOM 3 2,8 m 2 m 2,4 m +2°C 14 m³
CHILLER ROOM 4 4 m 2,2 m 2,2 m +2°C 20 m³
CHILLER ROOM 5 2,1 m 3,2 m 2,2 m +2°C 15 m³
FREEZER ROOM 1 2 m 2,5 m 2,4 m -18°C 12 m³
FREEZER ROOM 2 2 m 2,6 m 2,4 m -18°C 13 m³
FREEZER ROOM 3 4 m 1,8 m 2,2 m -18°C 16 m³
FREEZER ROOM 4 2,1 m 1,7 m 2,2 m -18°C 8 m³

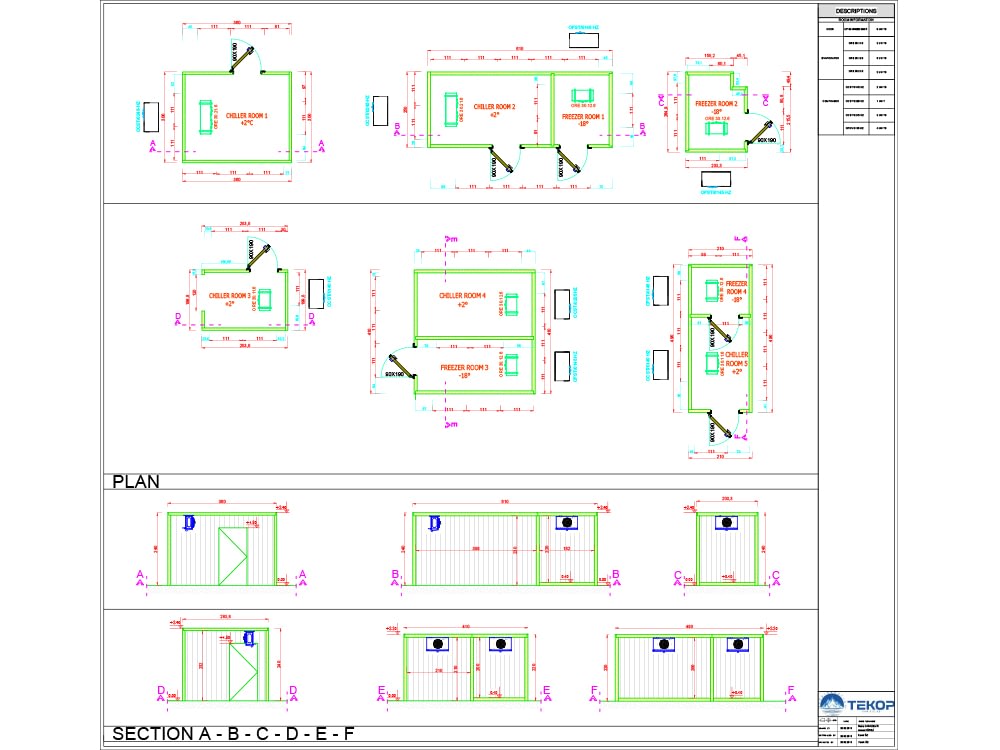

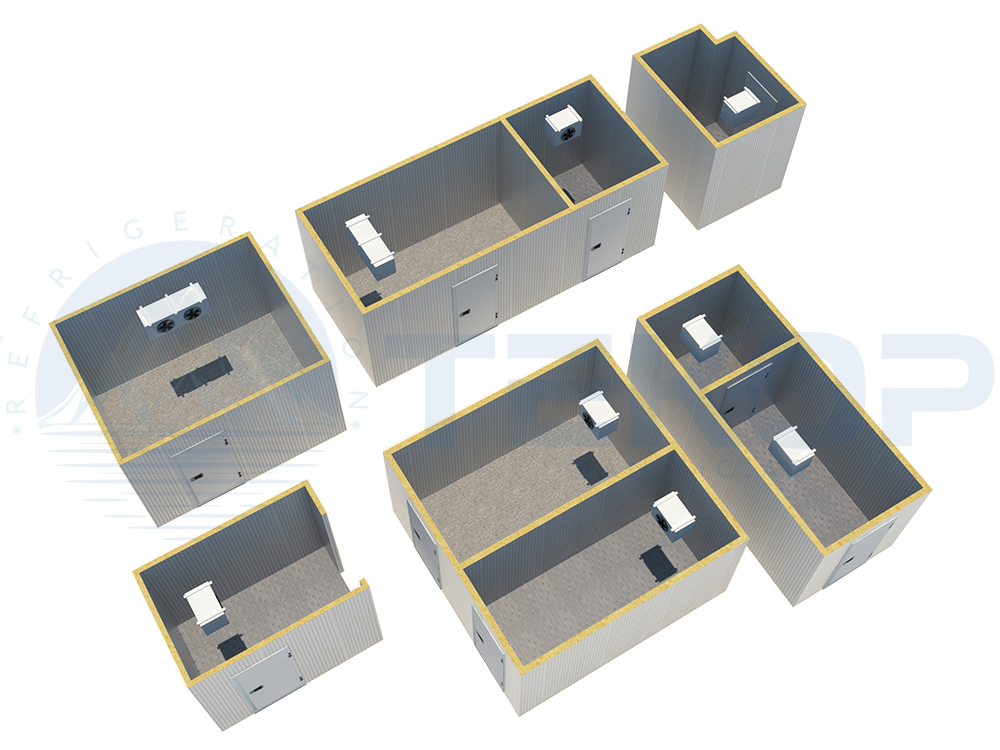

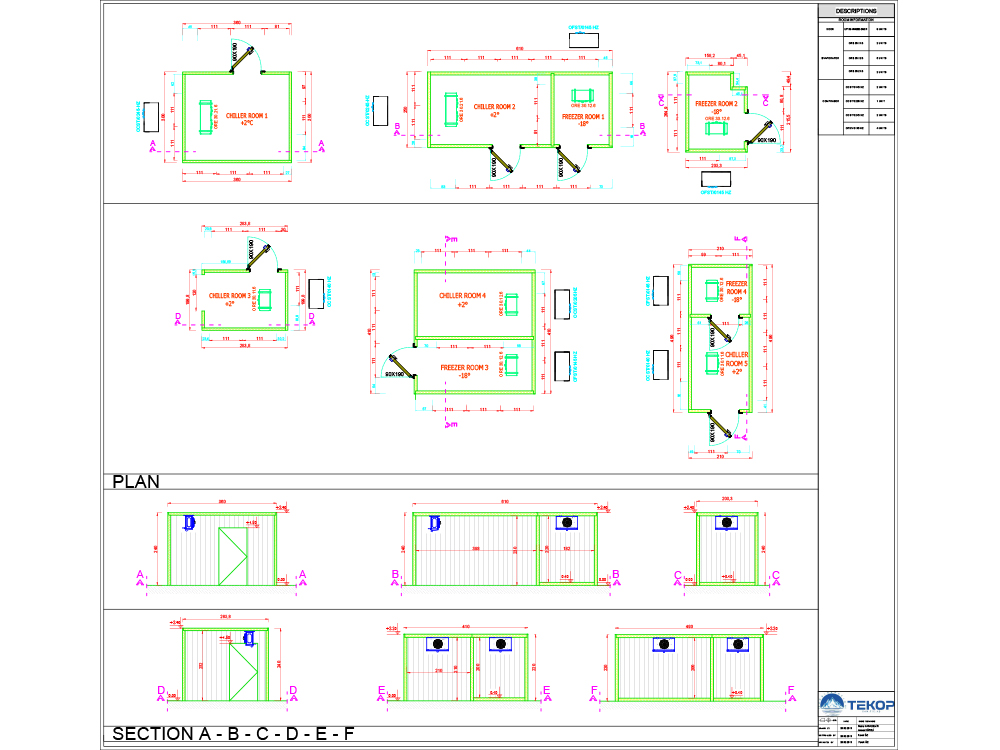

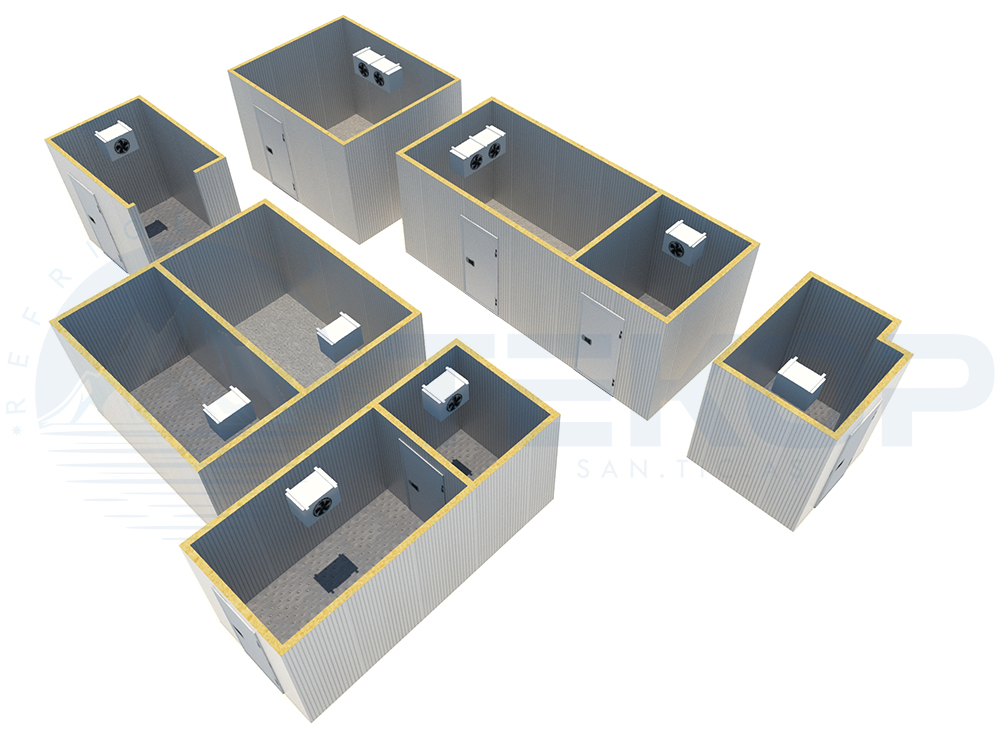

Design
