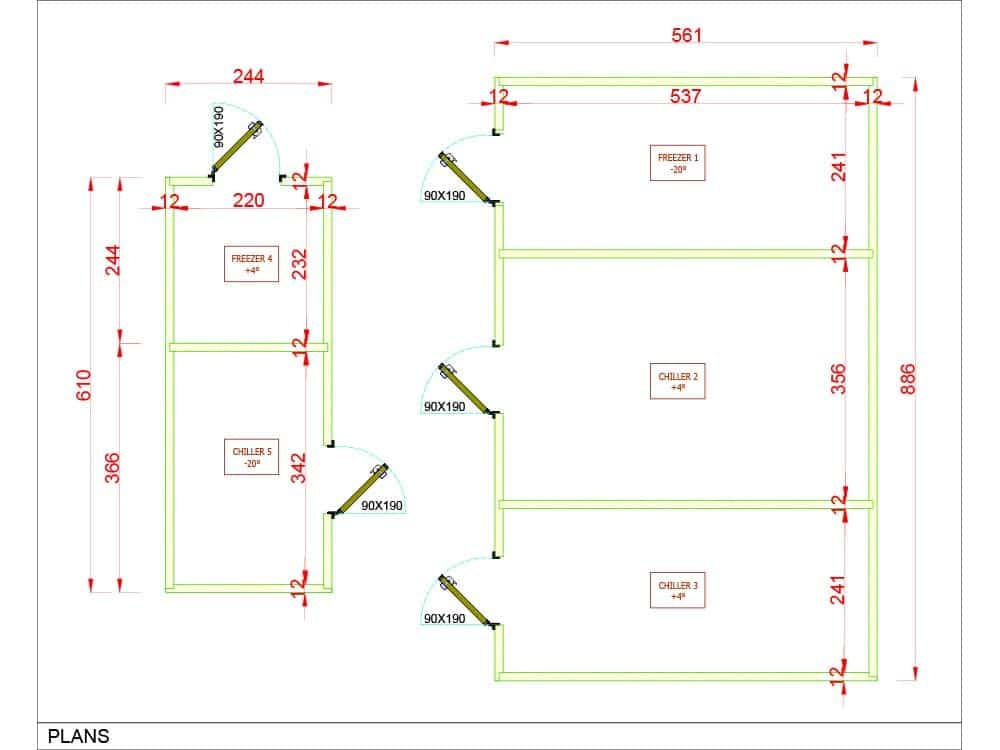

Maldives Cold Store Plan

Maldives Cold Store Construction

Project Information

PROJECT LOCATION : Maldives Republic
ROOM TYPES : 3 x Chiller Room – 2 x Freezer Room
PROJECT PURPOSE : General Cold Storage
PROJECT AREA : 65 m²
REFRIGERATION SYSTEMS : Split Refrigeration Units
DOORS : 5 x Hinged Cold Room Doors
PANELS : 267 m²

Customer Requests

  • 53 m³ capacity 1 pc. Chiller Room (+2 °C)
  • 36 m³ capacity 1 pc. Chiller Room (+2 °C)
  • 16 m³ capacity 1 pc. Chiller Room (+18 °C)
  • 36 m³ capacity 1 pc. Freezer Room (-18 °C)
  • 23 m³ capacity 1 pc. Freezer Room (-18 °C)

Project Details

ROOM NAME WIDTH LENGTH HEIGHT ROOM TEMPERATURE CAPACITY
CHILLER ROOM – 1 5,7 m 3,6 m 2,6 m +2 °C 53 m³
CHILLER ROOM – 2 5,7 m 2,4 m 2,6 m +2 °C 36 m³
CHILLER ROOM – 3 2,4 m 2,4 m 2,6 m +2 °C 16 m³
FREEZER ROOM – 1 5,7 m 2,4 m 2,6 m -18 °C 36 m³
FREEZER ROOM – 2 2,4 m 3,7 m 2,6 m -18 °C 23 m³

Design

Shipment
