Malta Chiller and Freezer Room Project

Project Information

PROJECT LOCATION : Malta
ROOM TYPES : 1 x Chiller Room , 1 x Freezer Room
PROJECT PURPOSE : General Cold Storage
PROJECT AREA : 12,36 m²
REFRIGERATION SYSTEMS : Split Refrigeration System
DOORS : 2 x Cold Room Hinged Door
PANELS : 71,5 m²

Customer Requests

  • 16 m³ capacity 1 pc. Chiller Room (+2 °C)
  • 16 m³ capacity 1 pc. Freezer Room (-18 °C)

Project Detaıls

ROOM NAME AREA HEIGHT ROOM TEMPERATURE CAPACITY
CHILLER ROOM 6,18 m² 2,59 m +2 °C 16 m³
FREEZER ROOM 6,18 m² 2,59 m -18 °C 16 m³

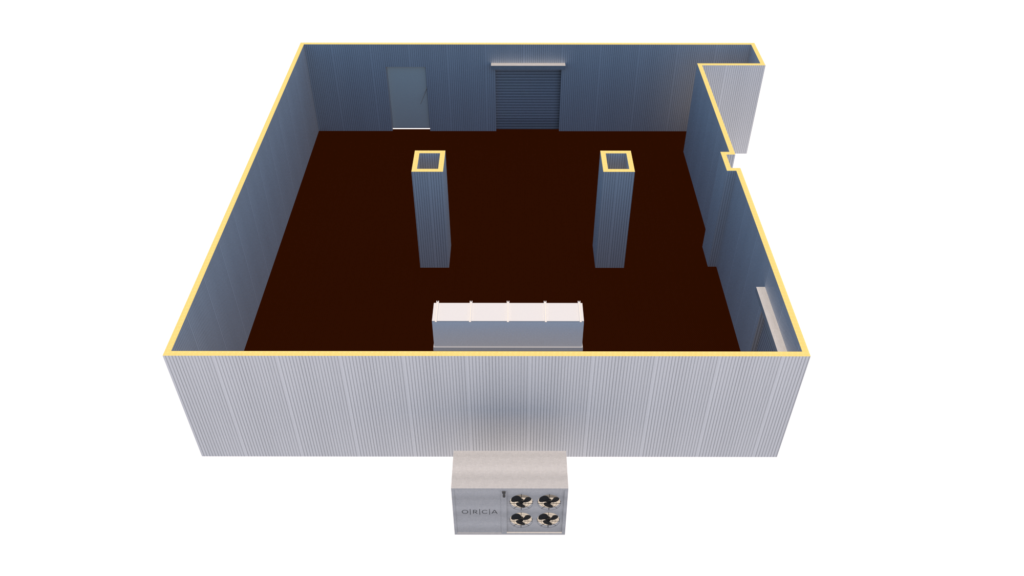

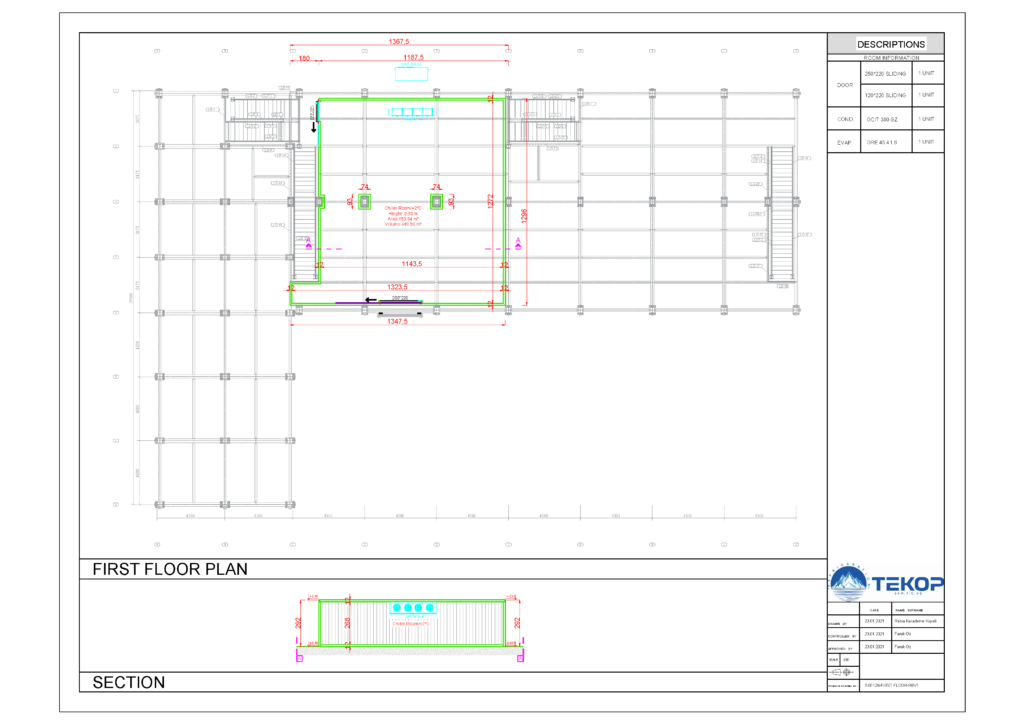

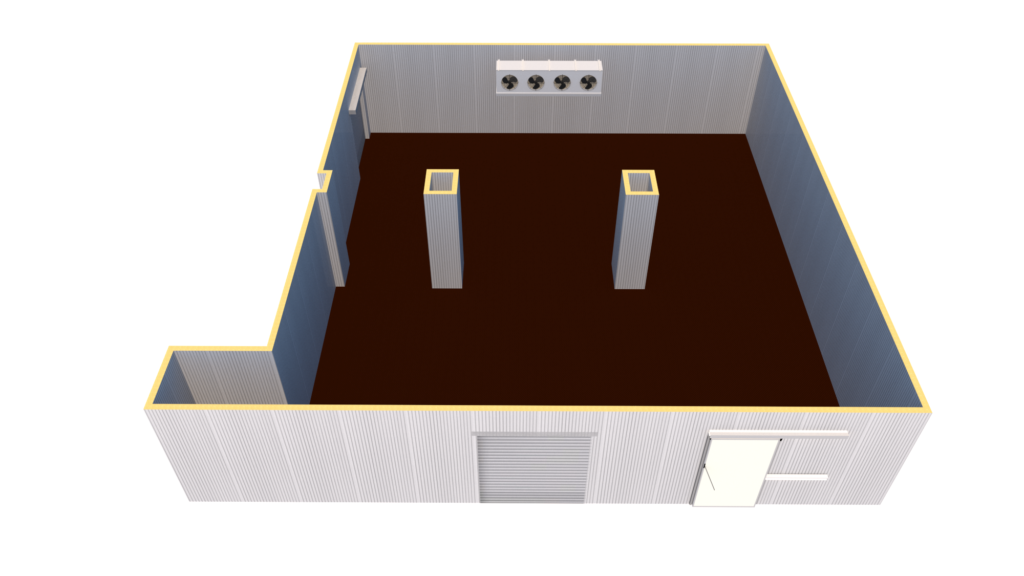

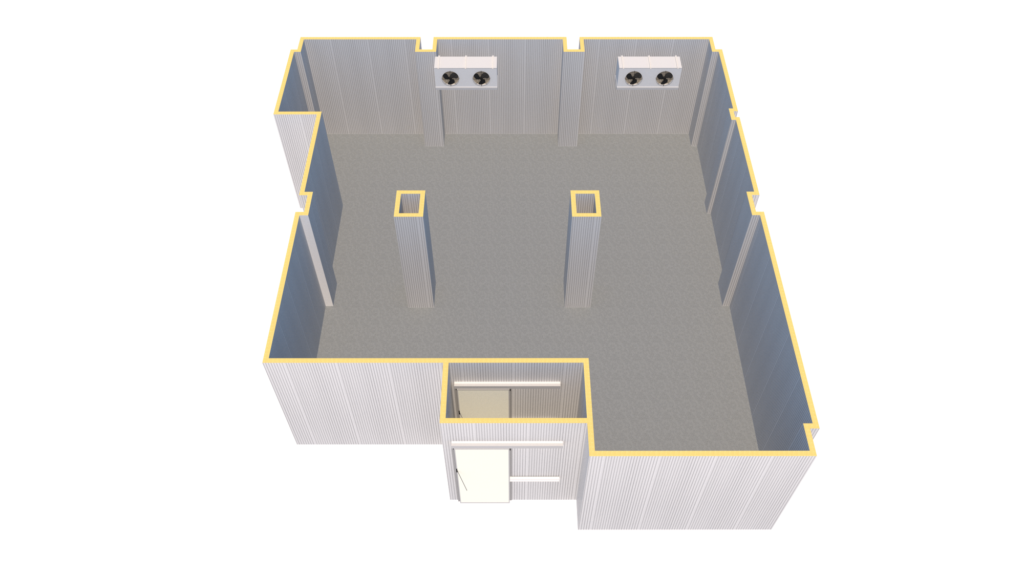

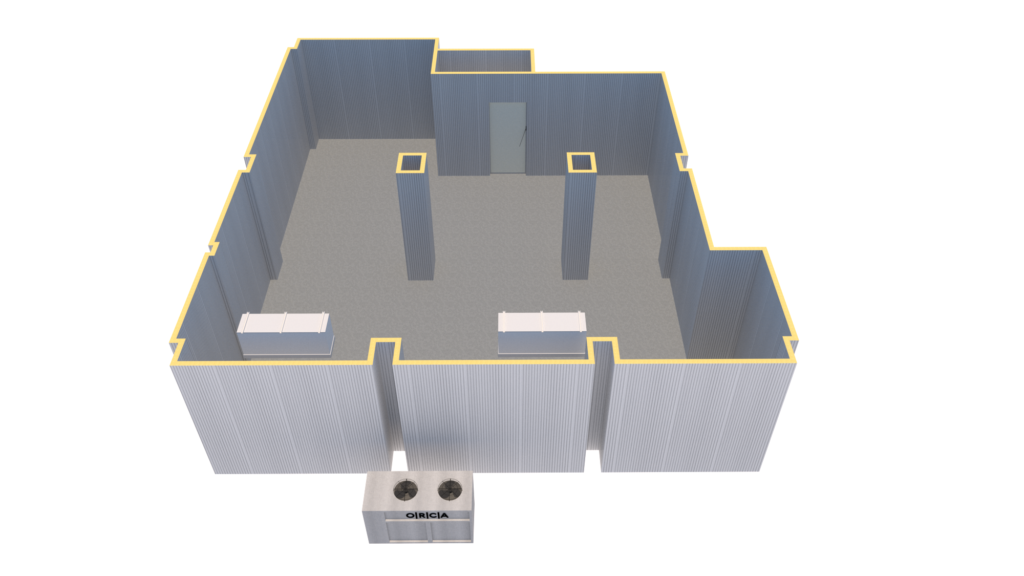

Design
