Maldives Cold Store Plan

Malta Cold Storage Project-4

Project Information

PROJECT LOCATION : Malta
ROOM TYPES : 1 x Chiller Room, 1 x Freezer Room
PROJECT PURPOSE : General Cold Storage
PROJECT AREA : 7,5 m²
REFRIGERATION SYSTEMS : Split Refrigeration System
COLD ROOM DOORS : 2 x Cold Room Hinged Door
COLD ROOM PANELS : 42 m²

Customer Requests

  • 9,1 m³ capacity 1 pc. Chiller Room (+2°C)
  • 9,1 m³ capacity 1 pc. Freezer Room (-18°C)

Project Detaıls

ROOM NAME AREA HEIGHT ROOM TEMPERATURE CAPACITY
CHILLER ROOM 3,75 m² 2,43 m +2 °C 9,11 m³
FREEZER ROOM 3,75 m² 2,43 m -18 °C 9,11 m³

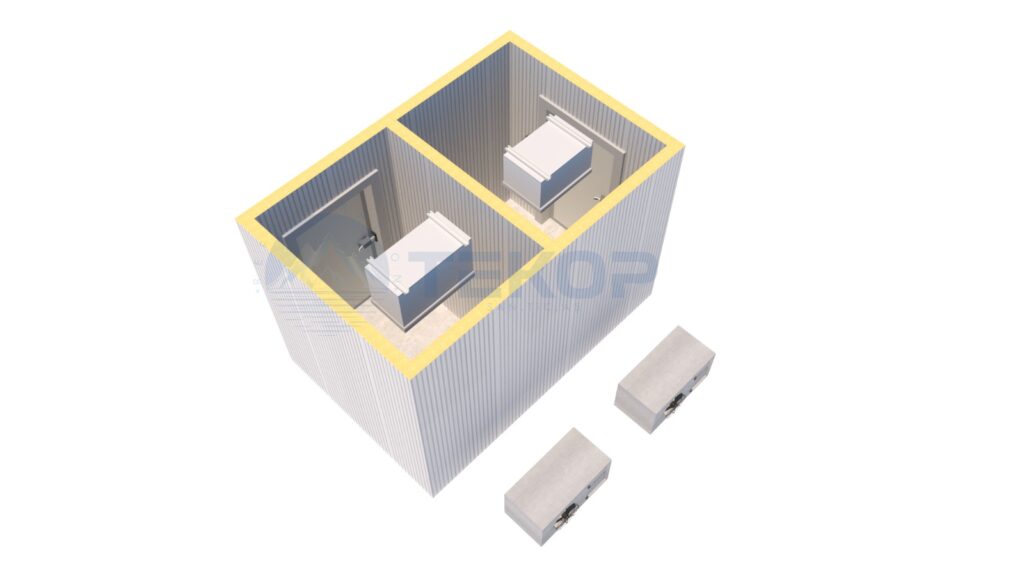

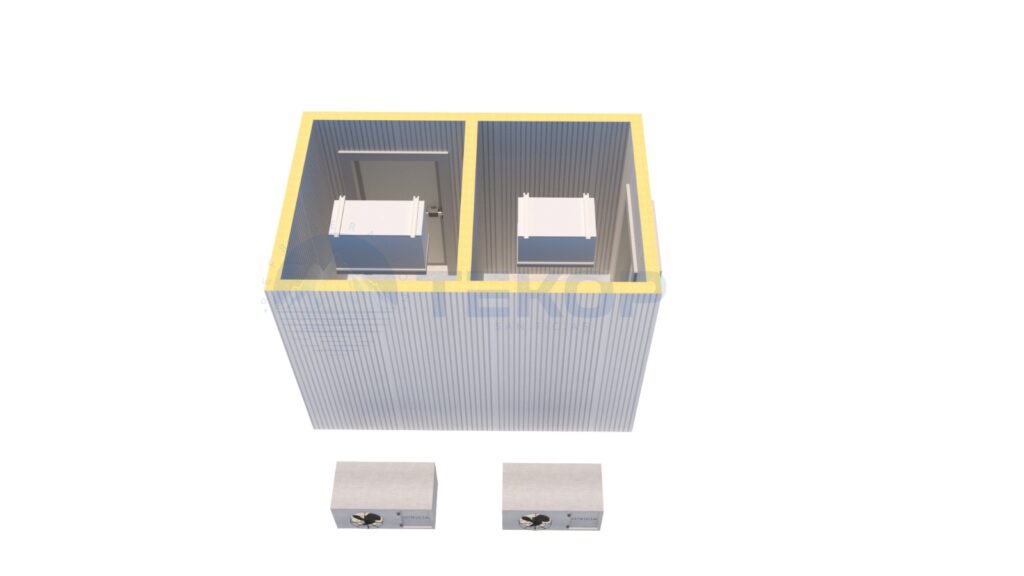

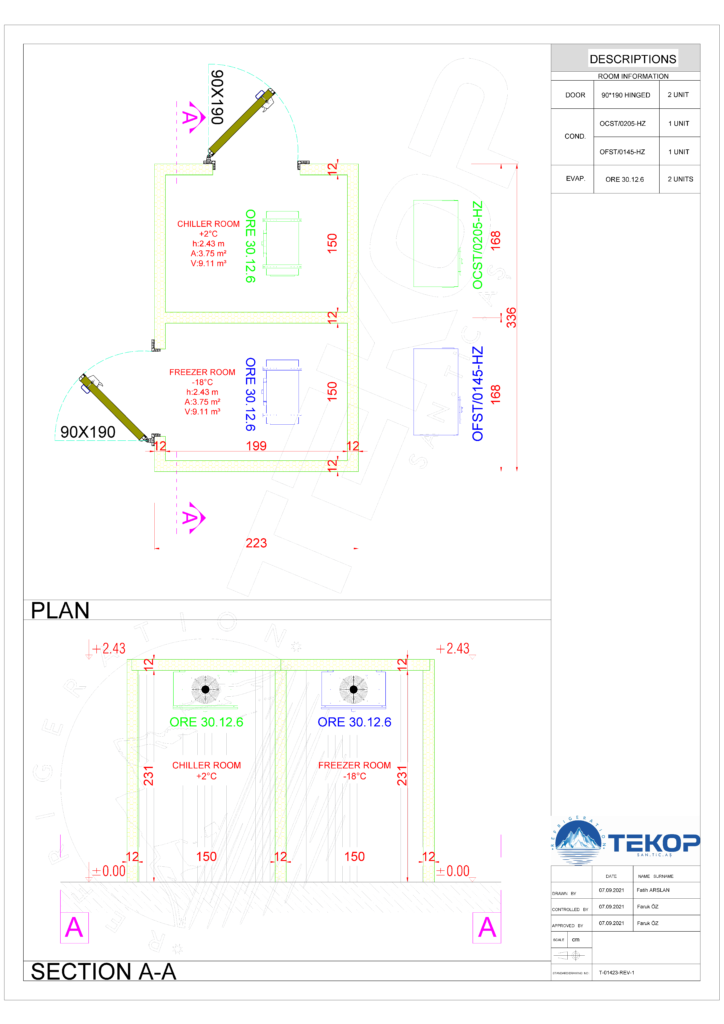

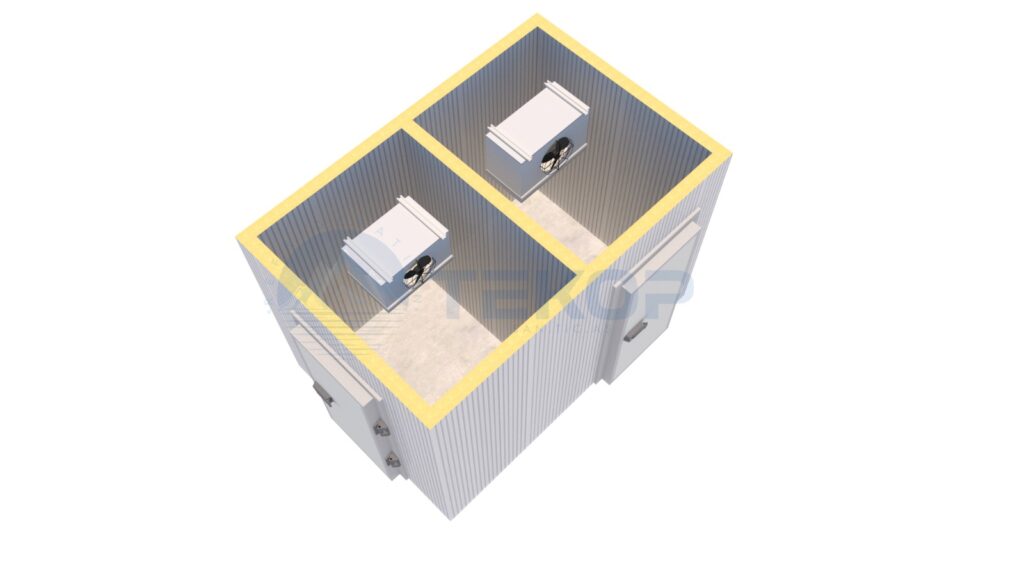

Design
