Palestine Cold Room Construction Project
Palestine Cold Room Construction Project
2019
27 Mar
Start
Our customer sent requests.
08 Apr
Preparing Project
Our project team prepared the project.
11 Apr
Offer
We sent the offer to our customer.
Project Information
| PROJECT LOCATION : | Palestine |
| ROOM TYPES : | 2 x Chiller Room – Freezer Room |
| PROJECT PURPOSE : | General Chiller & Freezer Rooms |
| PROJECT AREA : | 17 m² |
| REFRIGERATION SYSTEMS : | ORCA Split Refrigeration Units |
| DOORS : | 3 x Hinged Cold Room Doors |
| PANELS : | 92 m² |
Customer Requests
- 12 m³ capacity Chiller Room (+2 °C)
- 8 m³ capacity Chiller Room (+2 °C)
- 22 m³ capacity Freezer Room (-18 °C)
Project Details
| ROOM NAME | WIDTH | LENGTH | HEIGHT | ROOM TEMPERATURE | CAPACITY |
| CHILLER ROOM | 2 m | 2,5 m | 2,4 m | +2 °C | 12 m³ |
| CHILLER ROOM-2 | 11,6 m | 7,8 m | 4,6 m | +2 °C | 411 m³ |
| FREEZER ROOM | 2 m | 1,7 m | 2,3 m | -18 °C | 8 m³ |

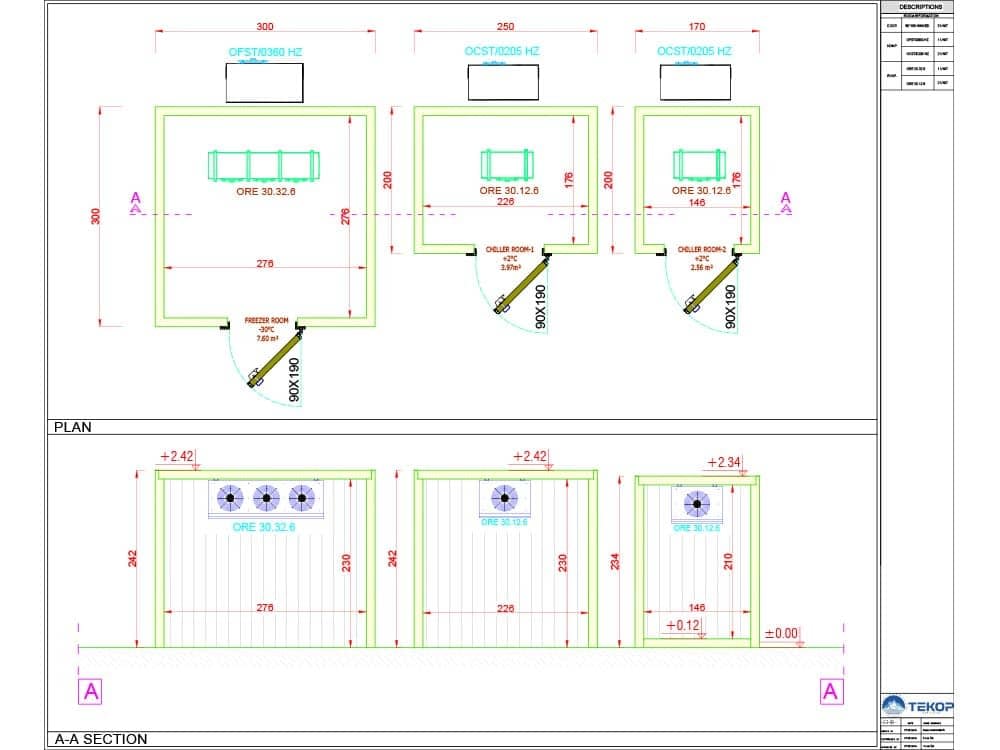

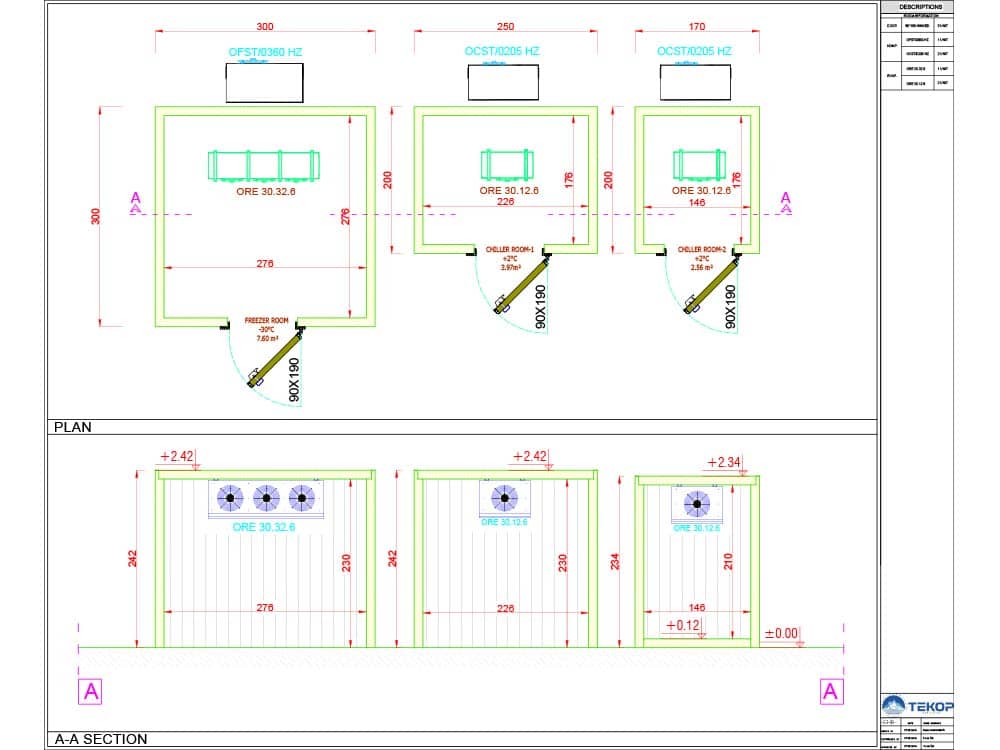

Design
