Qatar Dual Regime Cold Storage Project

Project Information

PROJECT LOCATION : Qatar
ROOM TYPES : 20 x Dual Regime Room , 2 x Loading Area , 2 x Corridor
PROJECT PURPOSE : General Cold Storage
PROJECT AREA : 2926,58 m²
REFRIGERATION SYSTEMS : Central Refrigeration System
DOORS : 20 x Sliding Door , 6 x Sectional Door , 2 x Roll-up Door
PANELS : 7191,39 m²

Customer Requests

  • 622 m³ capacity 20 pc. Dual Regime Room (+2 °C/-18 °C)
  • 1306 m³ capacity 2 pc. Corridor (+10 °C/+12 °C)
  • 597 m³ capacity 2 pc. Loading Area

Project Detaıls

ROOM NAME AREA HEIGHT ROOM TEMPERATURE CAPACITY
20 x DUAL REGIME ROOM 81,1 m² 8,00 m +2/-18 °C 622 m³
2 x CORRIDOR 163,25 m² 8,00 m +10/+12 °C 1306 m³
2 x AMBIENT ROOM 119,48 m² 5,00 m +10/+12 °C 597 m³

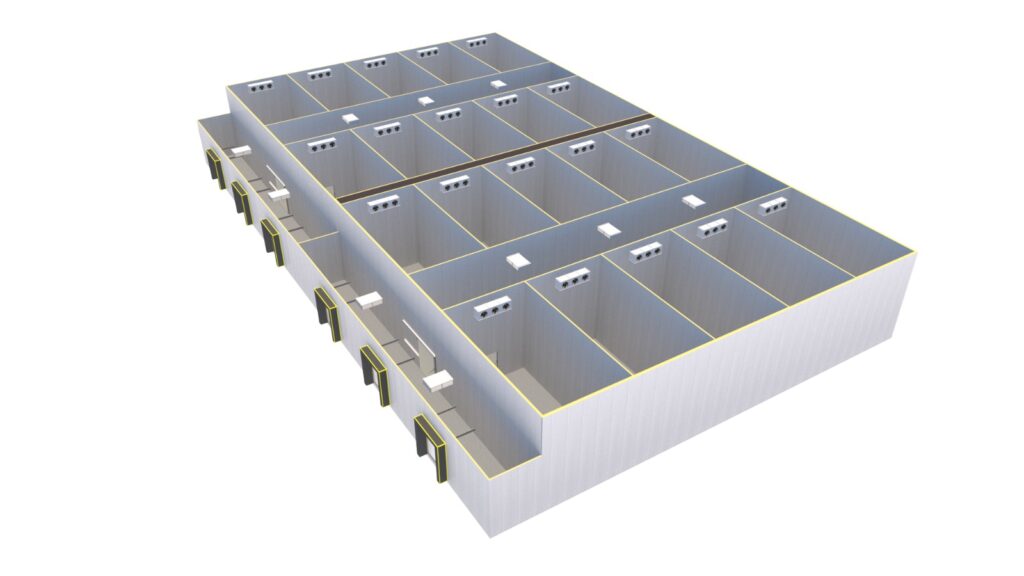

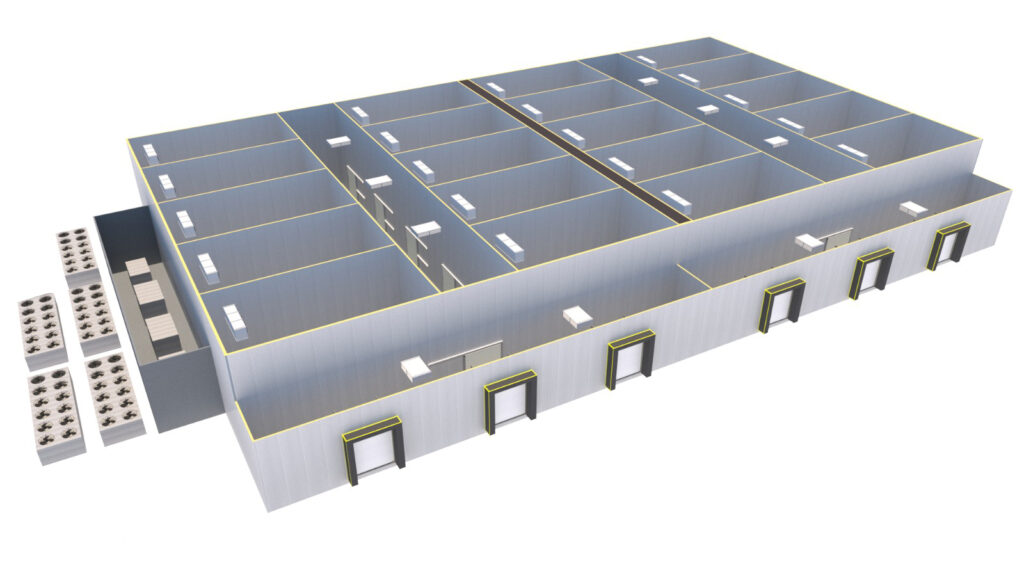

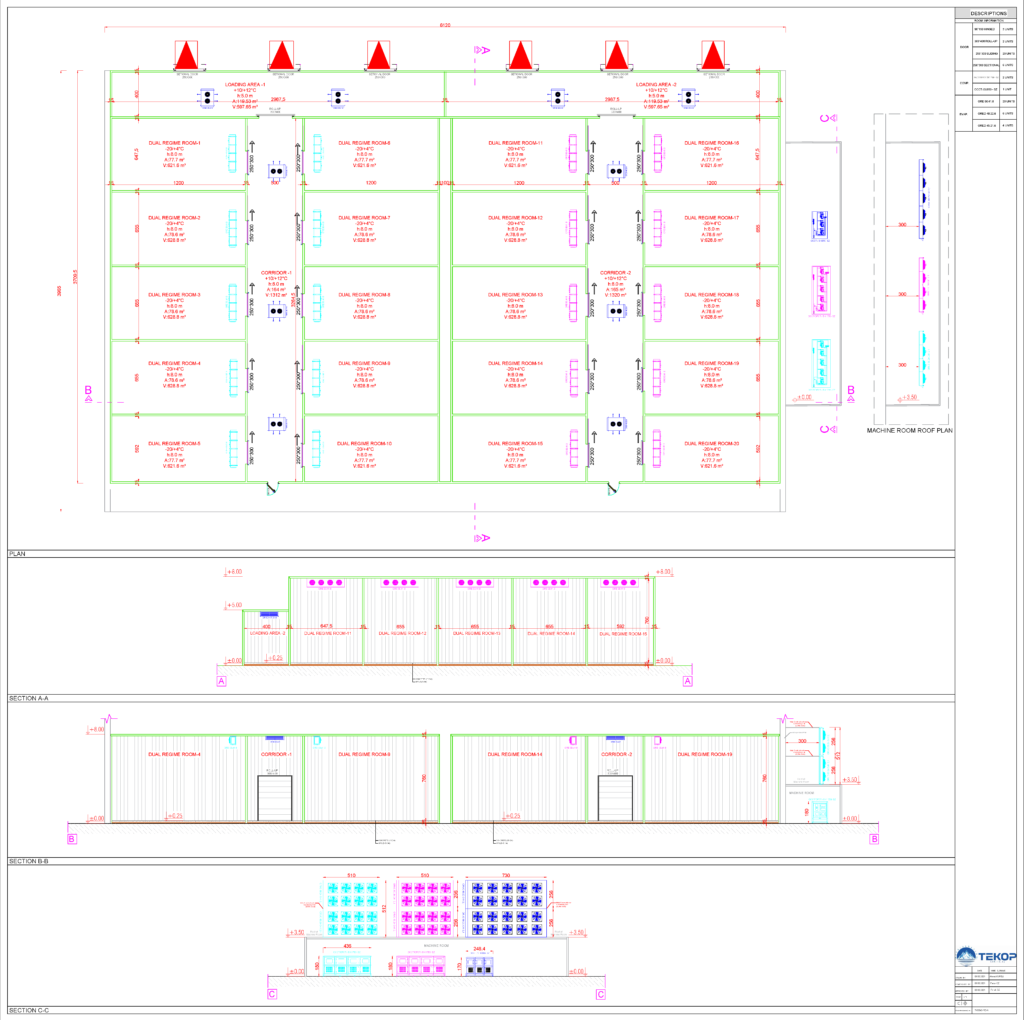

Design

Shipment
