Maldives Cold Store Plan

Republic of Maldives Freezer Room Project

Project Information

PROJECT LOCATION : Republic of Maldives
ROOM TYPES : 2 x Freezer Room
PROJECT PURPOSE : General Cold Storage
PROJECT AREA : 36 m²
REFRIGERATION SYSTEMS : Split Refrigeration System
DOORS : 2 x Hinged Door
PANELS : 150 m²

Customer Requests

  • 33 m³ capacity 1 pc. Freezer Room (-18 °C)
  • 57,55 m³ capacity 1 pc. Freezer Room (-18 °C)

Project Detaıls

ROOM NAME AREA HEIGHT ROOM TEMPERATURE CAPACITY
FREEZER ROOM-1 13,2 m² 2,50 m -18 °C 33 m³
FREEZER ROOM-2 23,02 m² 2,50 m -18 °C 57,55 m³

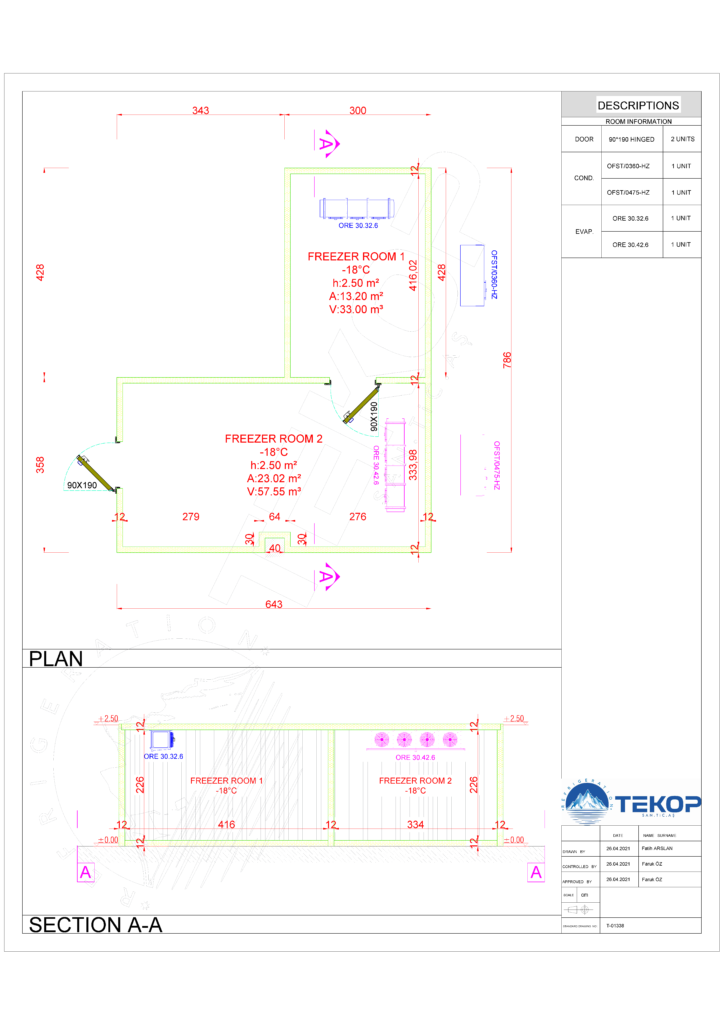

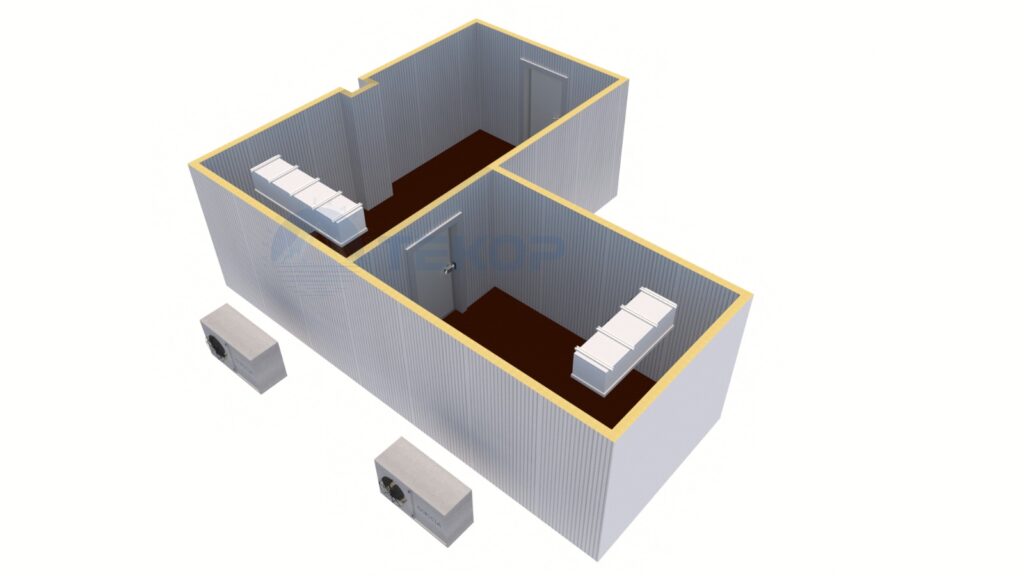

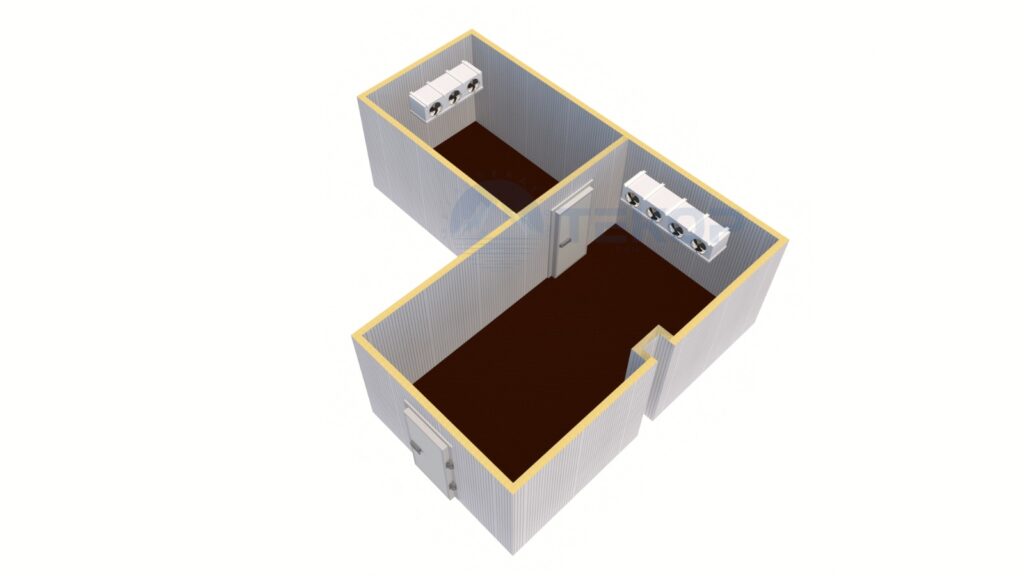

Design

Shipment
