United Kingdom Cold and Freezer Room Project

Project Information

PROJECT LOCATION : United Kingdom
ROOM TYPES : 1 x Chiller Room , 1 x Freezer Room , 1 x Ambient Room
PROJECT PURPOSE : General Cold Storage
PROJECT AREA : 45 m²
REFRIGERATION SYSTEMS : Split Refrigeration System
DOORS : 3 x Cold Room Hinged Door
PANELS : 185,2 m²

Customer Requests

  • 20 m³ capacity 1 pc. Freezer Room (-21 °C)
  • 19 m³ capacity 1 pc. Chiller Room (+2 °C)
  • 71 m³ capacity 1 pc. Ambient Room

Project Detaıls

ROOM NAME AREA HEIGHT ROOM TEMPERATURE CAPACITY
CHILLER ROOM 7,98 m² 2,46 m +2 °C 20 m³
FREEZER ROOM 8,17 m² 2,46 m -21 °C 19 m³
AMBIENT ROOM 28,88 m² 2,46 m 71 m³

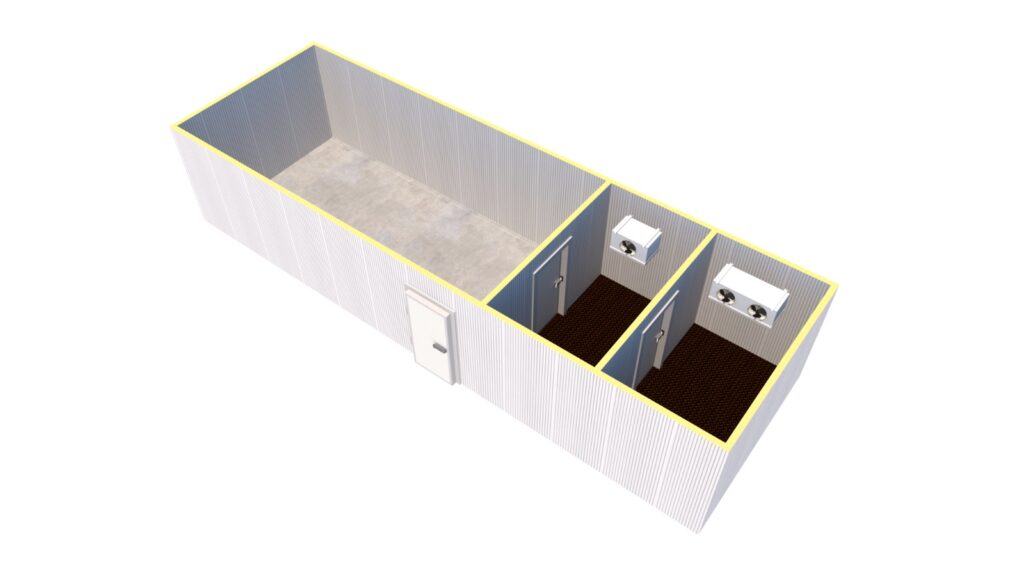

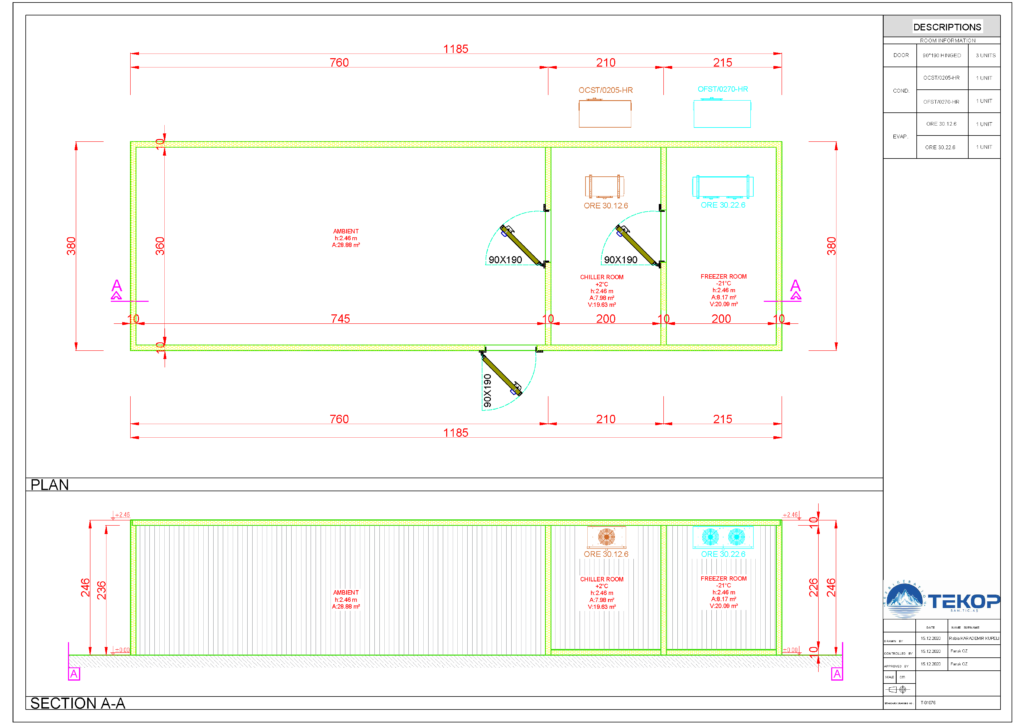

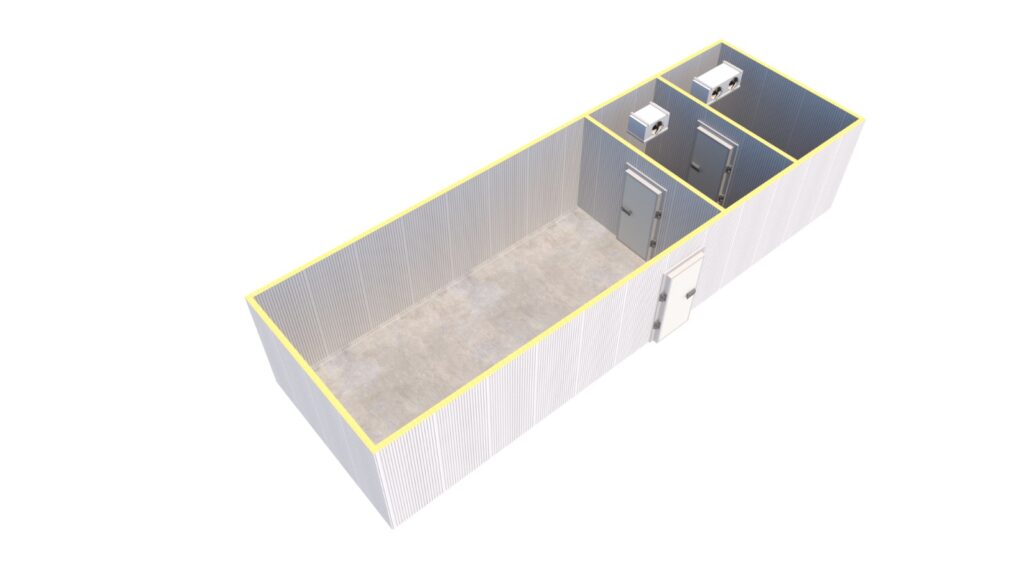

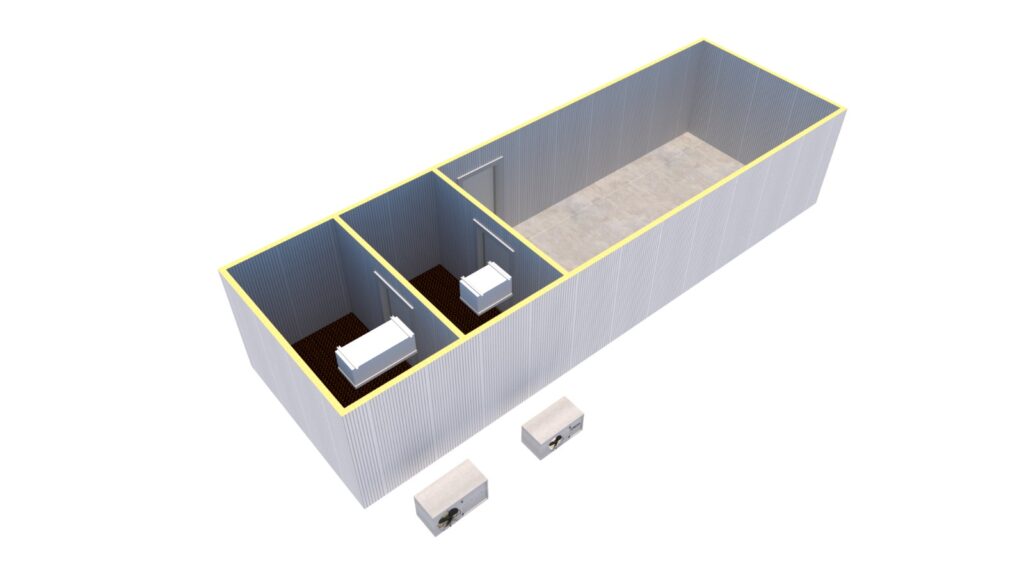

Design

Shipment
