Zambia Cold Room Construction

Zambia Cold Storage Construction

Project Information

PROJECT LOCATION : Zambia
ROOM TYPES : 6 x Chiller Rooms Freezer Room
PROJECT PURPOSE : General Cold Room
PROJECT AREA : 910 m²
REFRIGERATION SYSTEMS : Split Refrigeration System
DOORS : 7 x Sliding Doors
PANELS : 3304 m²

Customer Requests

  • 115 m³ capacity 3 pcs. Chiller Room (+2 °C)
  • 916 m³ capacity 1 pc. Chiller Room (+2 °C)
  • 441 m³ capacity 1 pc. Chiller Room (+2 °C)
  • 429 m³ capacity 1 pc. Chiller Room (+2 °C)
  • 780 m³ capacity 1 pc. Freezer Room (-18 °C)

Project Details

ROOM NAME WIDTH LENGTH HEIGHT ROOM TEMPERATURE CAPACITY
3 x CHILLER ROOM 23,5 m 7,3 m 6,5 m +2 °C 1115 m³
CHILLER ROOM 23,5 m 6 m 6,5 m +2°C 916 m³
CHILLER ROOM 5,8 m 11,7 m 6,5 m +2°C 441 m³
CHILLER ROOM 6 m 11 m 6,5 m +2°C 429 m³
FREEZER ROOM 6 m 20 m 6,5 m -18°C 780 m³

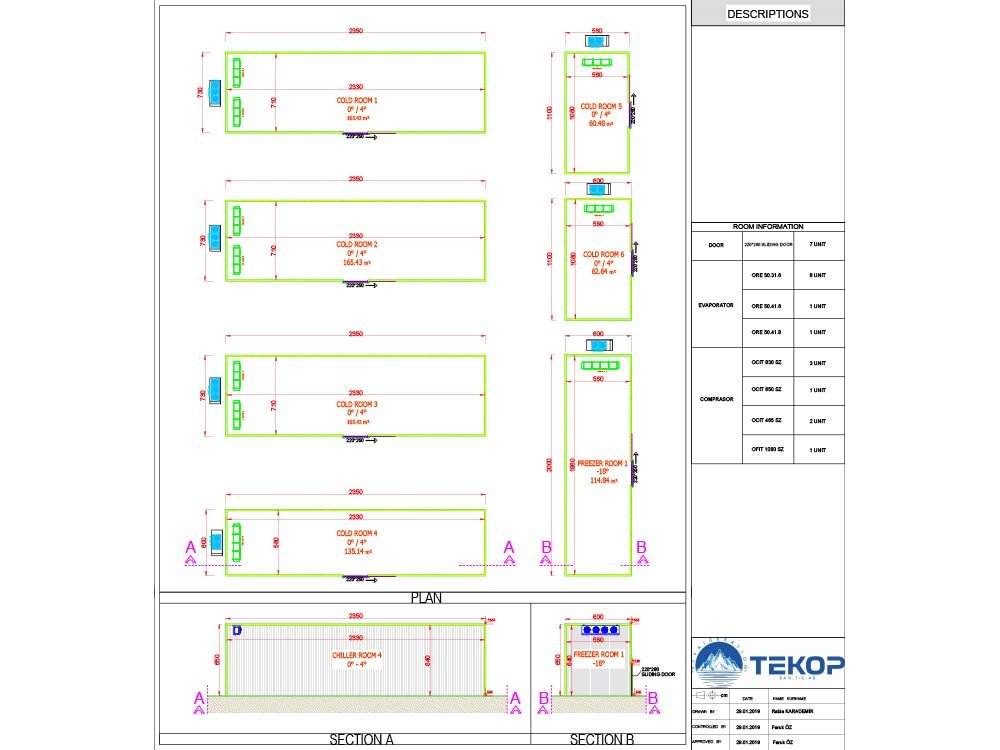

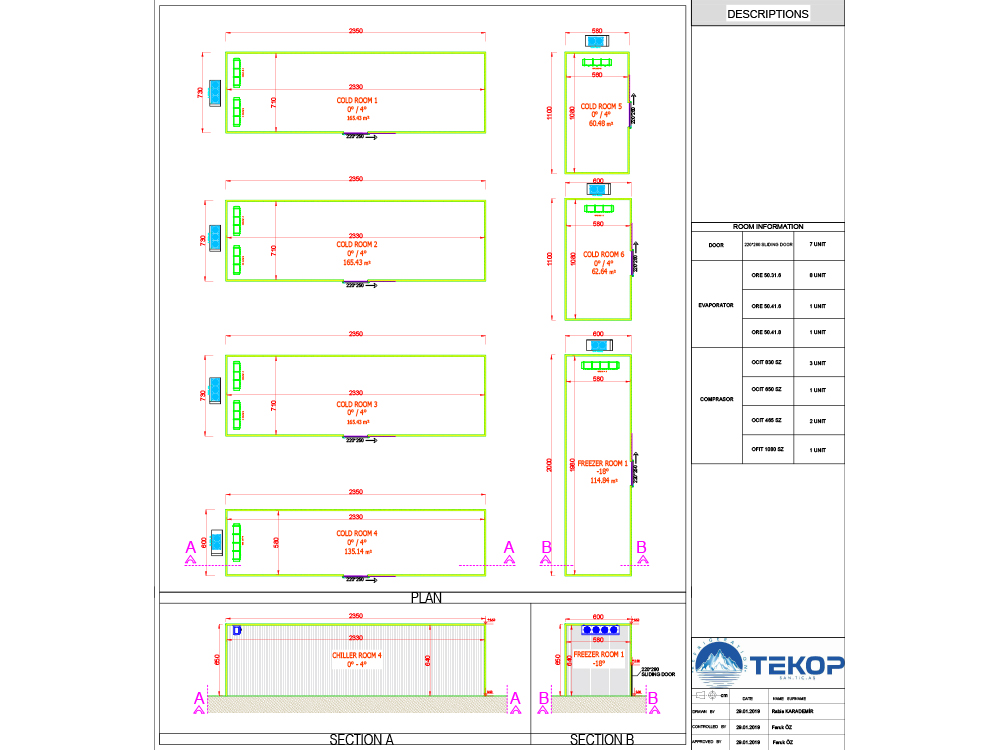

Design
